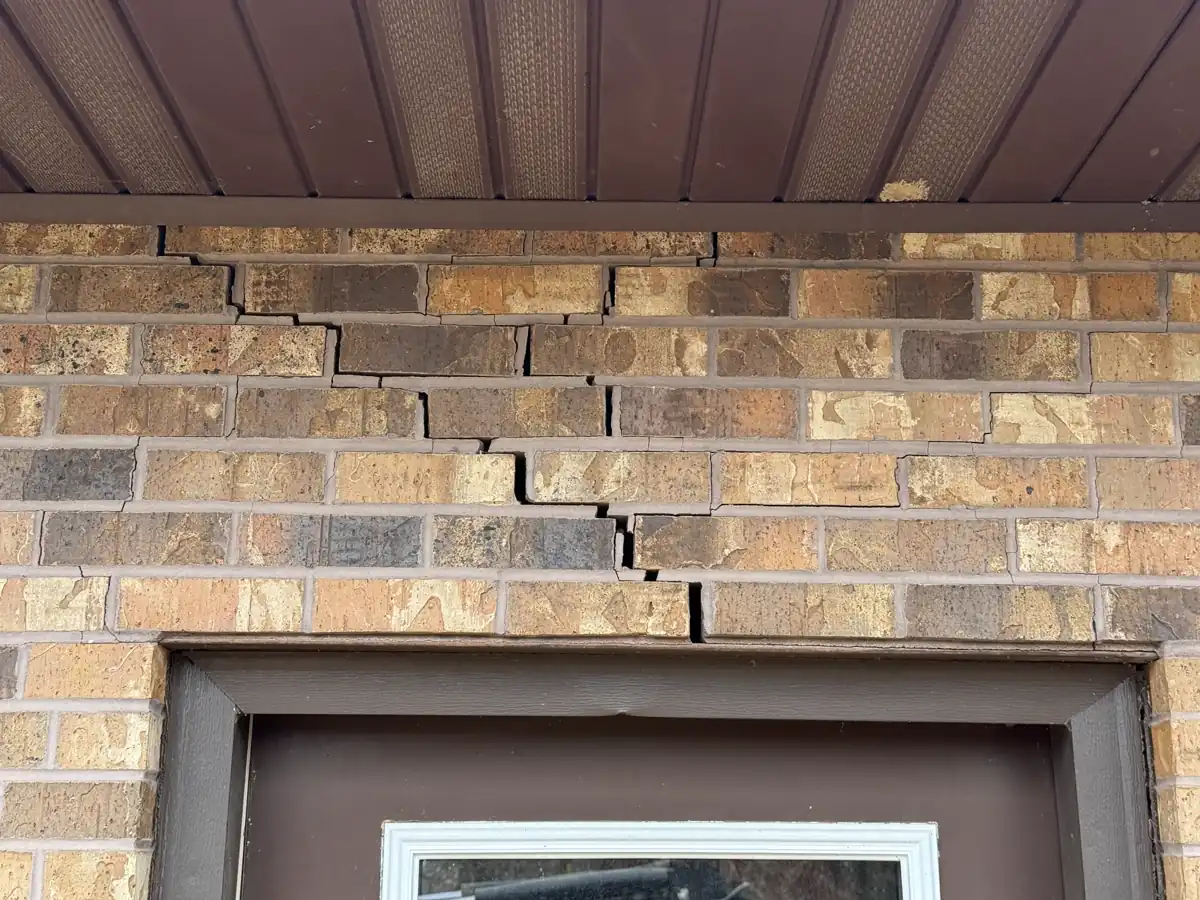

The homeowner in Grandview noticed widening cracks around both garage doors and a side window that no longer closed properly. The house sat on Jackson County's notorious Wymore-Ladoga clay — soil that swells dramatically when wet and shrinks during dry spells, creating a relentless push-pull cycle on foundations.

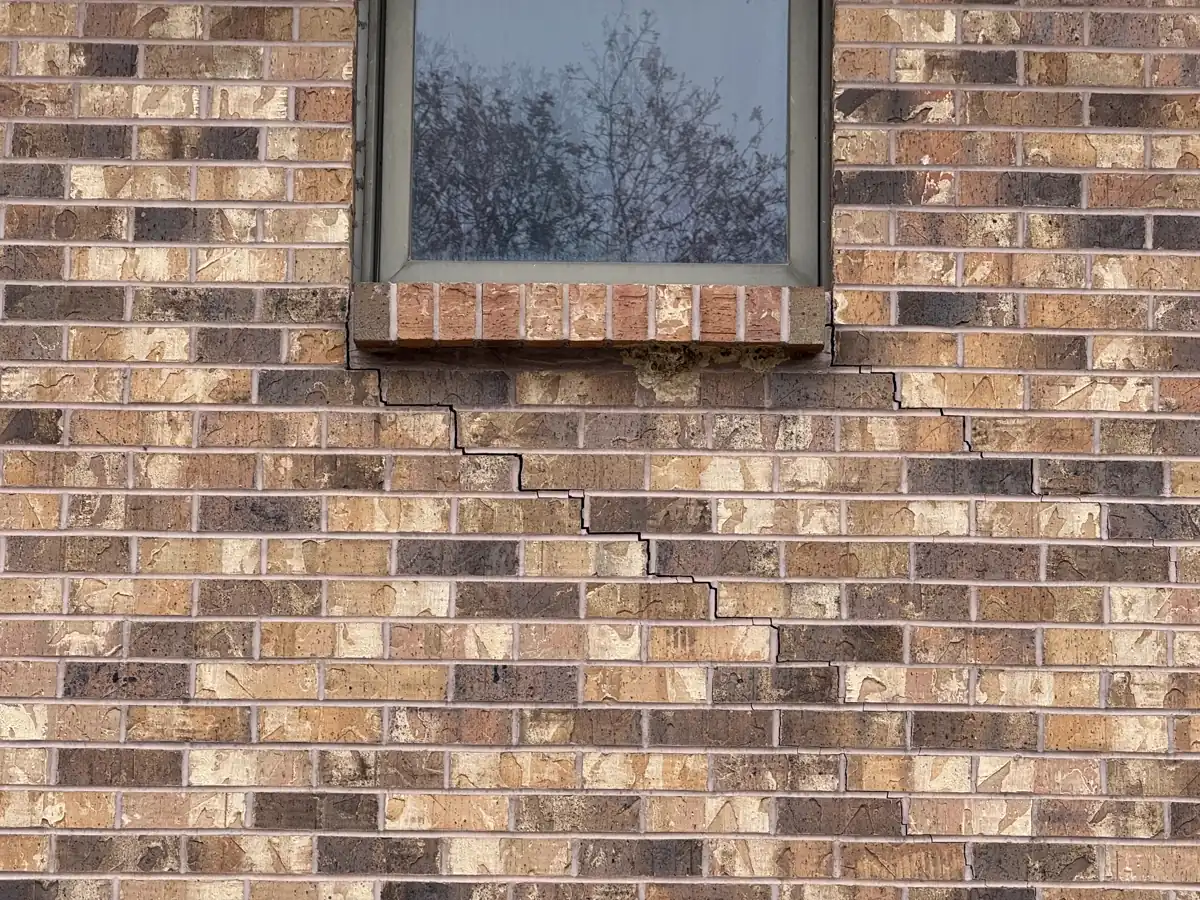

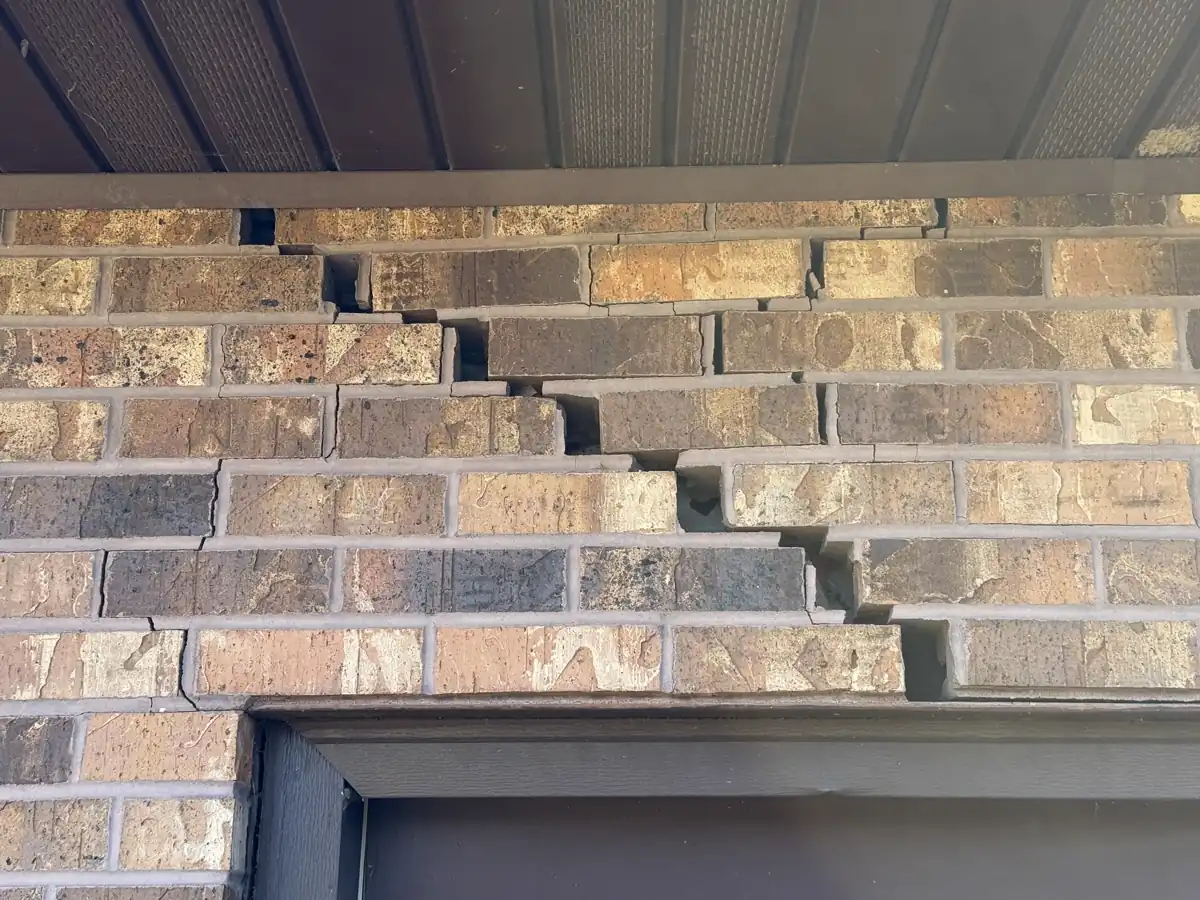

By the time we got out there, the settlement had progressed to the point where you could see daylight through the gap between the window frame and the wall. The garage slab had dropped nearly two inches on one side, and horizontal cracks were forming along the block wall. Left alone, this kind of progressive settlement leads to structural failure — not just cosmetic damage.

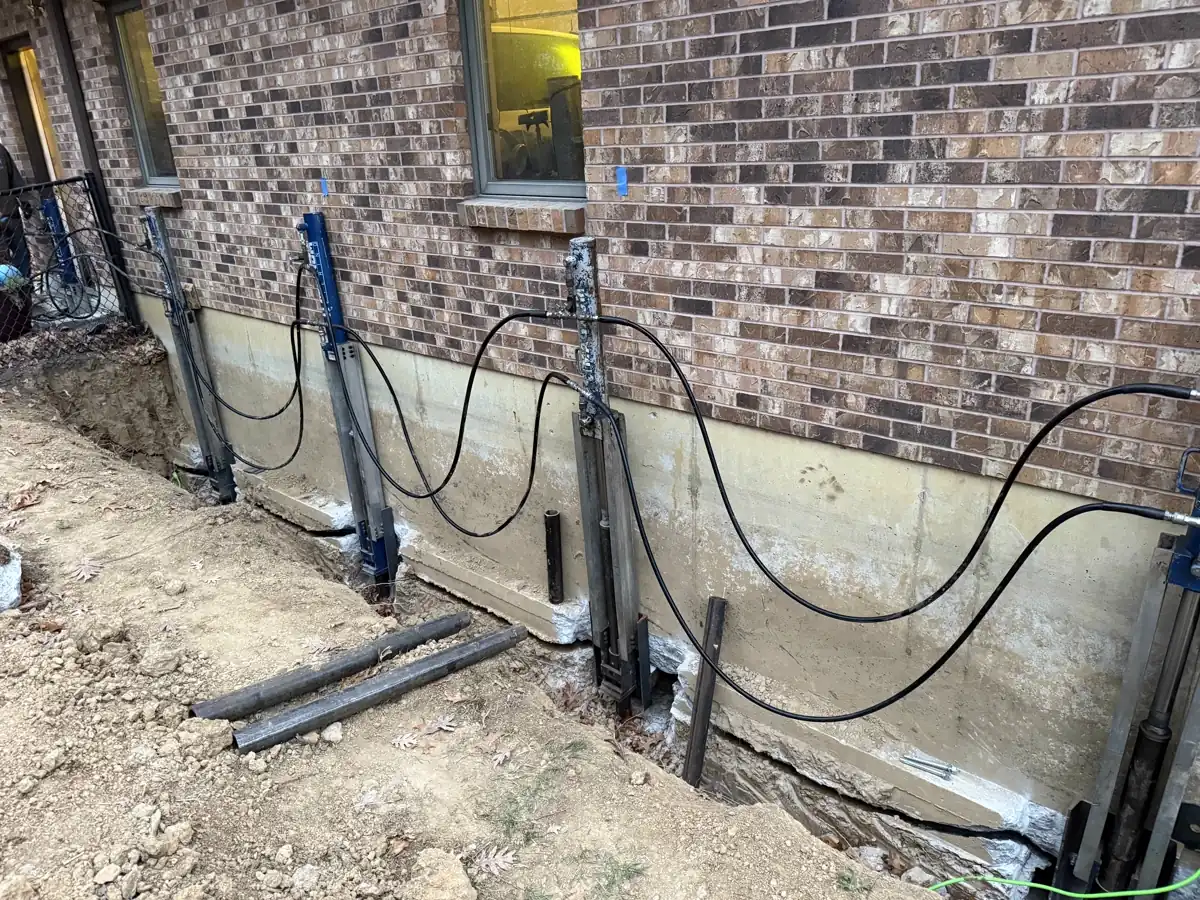

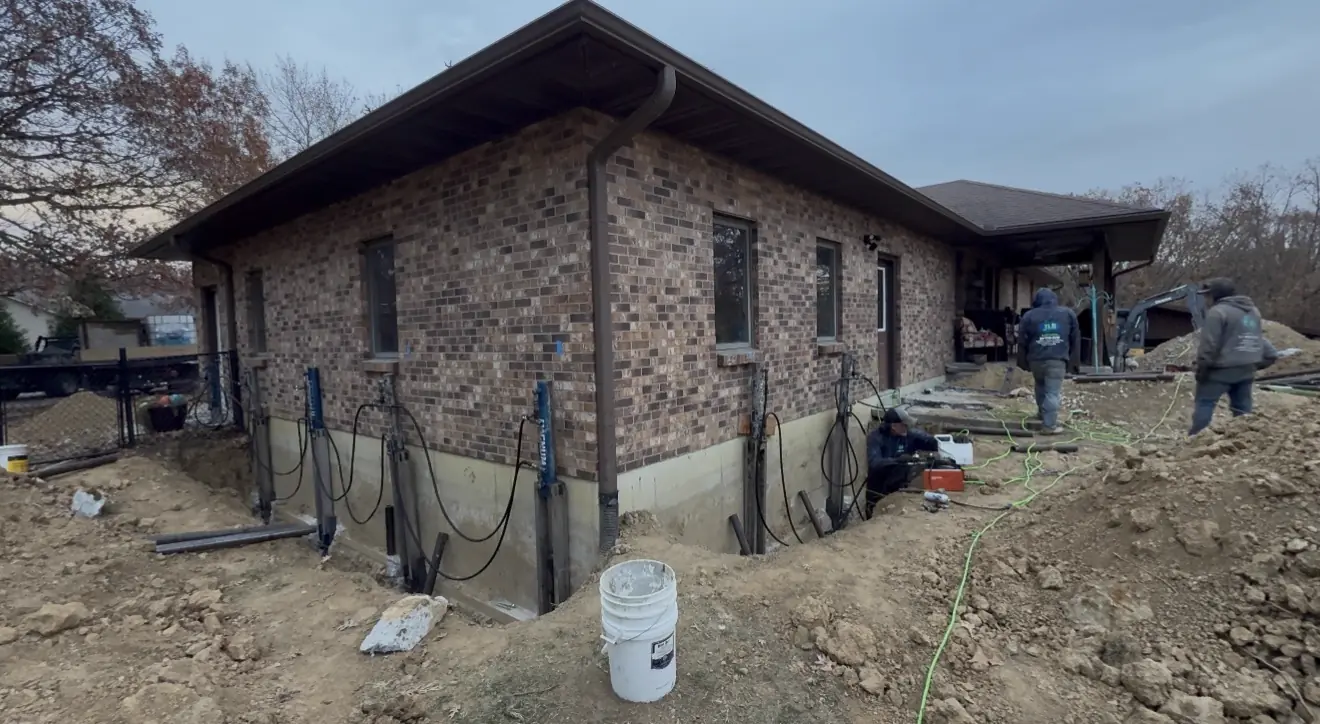

We installed 36 steel push piers around the perimeter, driving each one through the unstable clay until it hit load-bearing strata well below the frost line. This type of push pier underpinning transfers the home's weight off the failing clay and onto deep, competent soil. Once every pier was seated, we used hydraulic jacks to lift the foundation back toward its original elevation in a carefully controlled sequence — starting at the corners and working inward to distribute the load evenly.

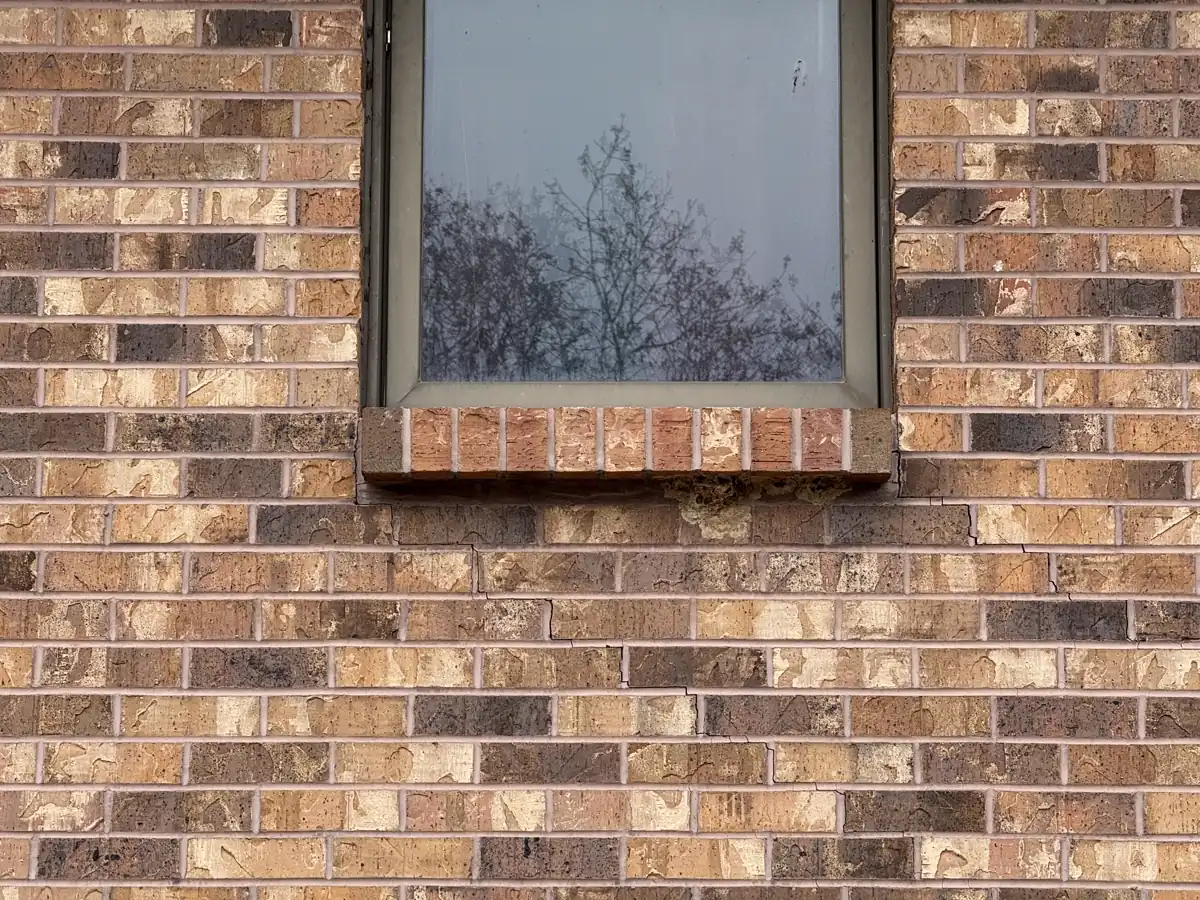

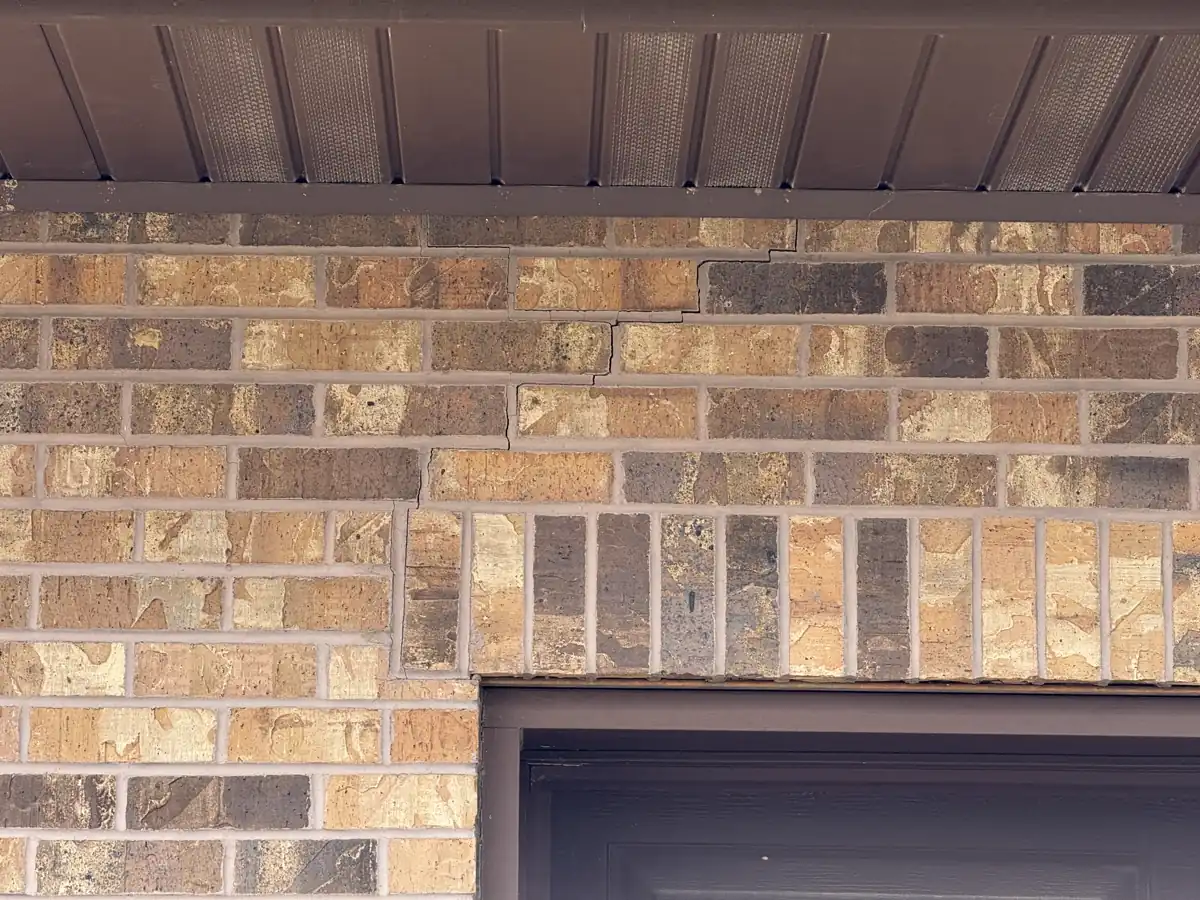

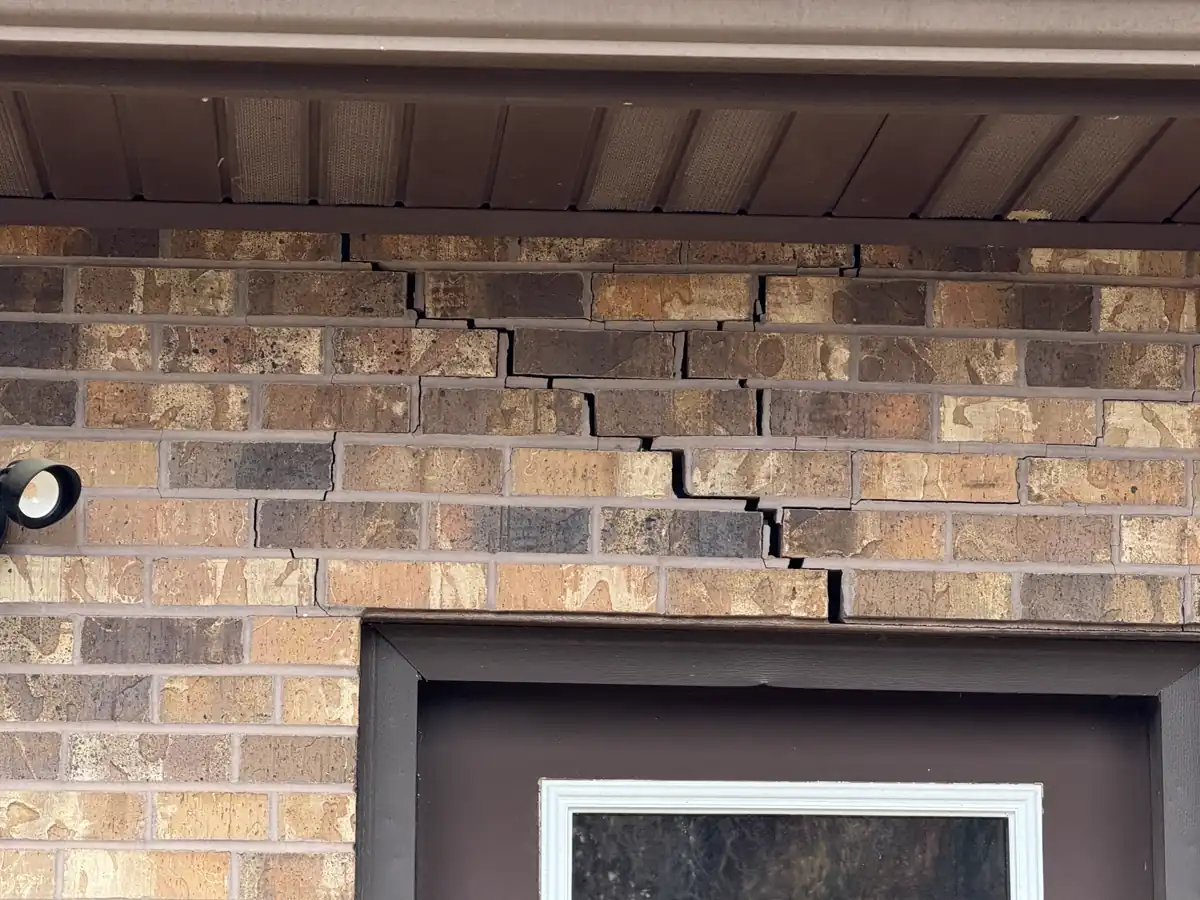

The window gaps closed up, the garage door frames came back into alignment, and the cracks that had been actively growing went dormant. Each pier is independently load-tested before we call the job done. With the settlement halted, the homeowner also had us address water seeping into the basement through the cracks that had opened up during the years of movement.
