Olathe Home Foundation Repair on Shifting Clay Soils

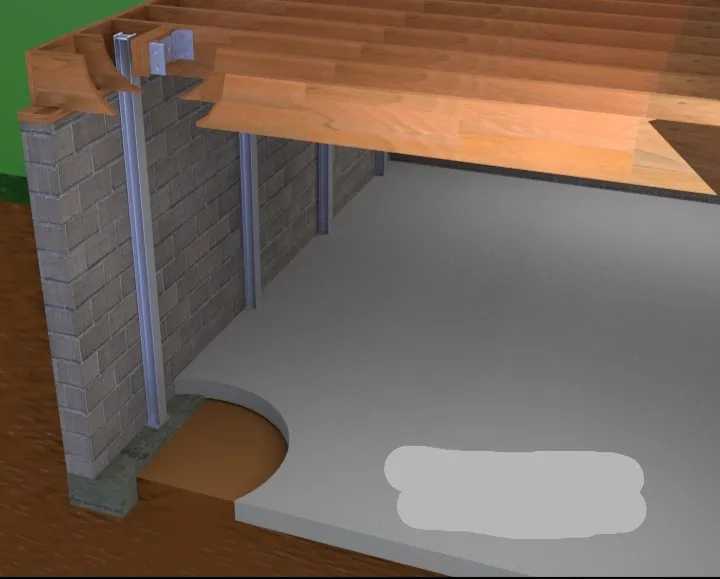

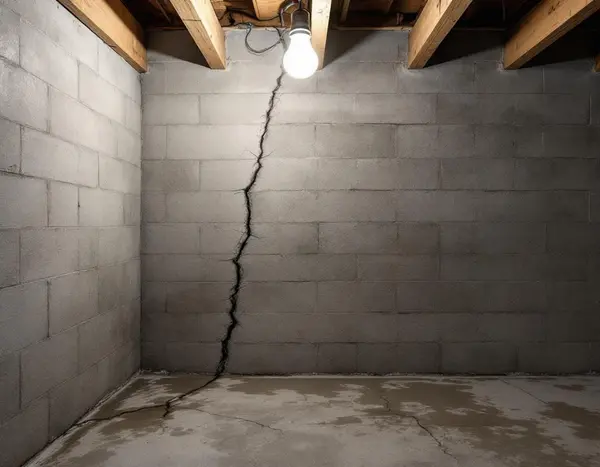

Olathe's Old Downtown homes — many built before 1950 — used concrete block or stone foundations that have mortar joints as weak points. Johnson County's Wymore-Ladoga clay, with 60–80% clay content, expands and contracts with each wet-dry cycle, applying lateral pressure that exploits those joints. Block walls bow inward in a distinctive pattern, with horizontal cracking along mortar lines and stair-step fractures near corners. Poured concrete foundations in south Olathe's post-2000 developments fail differently: you'll see vertical or diagonal cracks from settlement rather than lateral bowing, because poured walls resist horizontal pressure more uniformly. The repair approach differs too — block walls often need wall anchors ($400–$700 each) or carbon fiber straps ($350–$1,000 per strap), while poured concrete settlement typically calls for push piers at $1,250–$2,500 per pier.

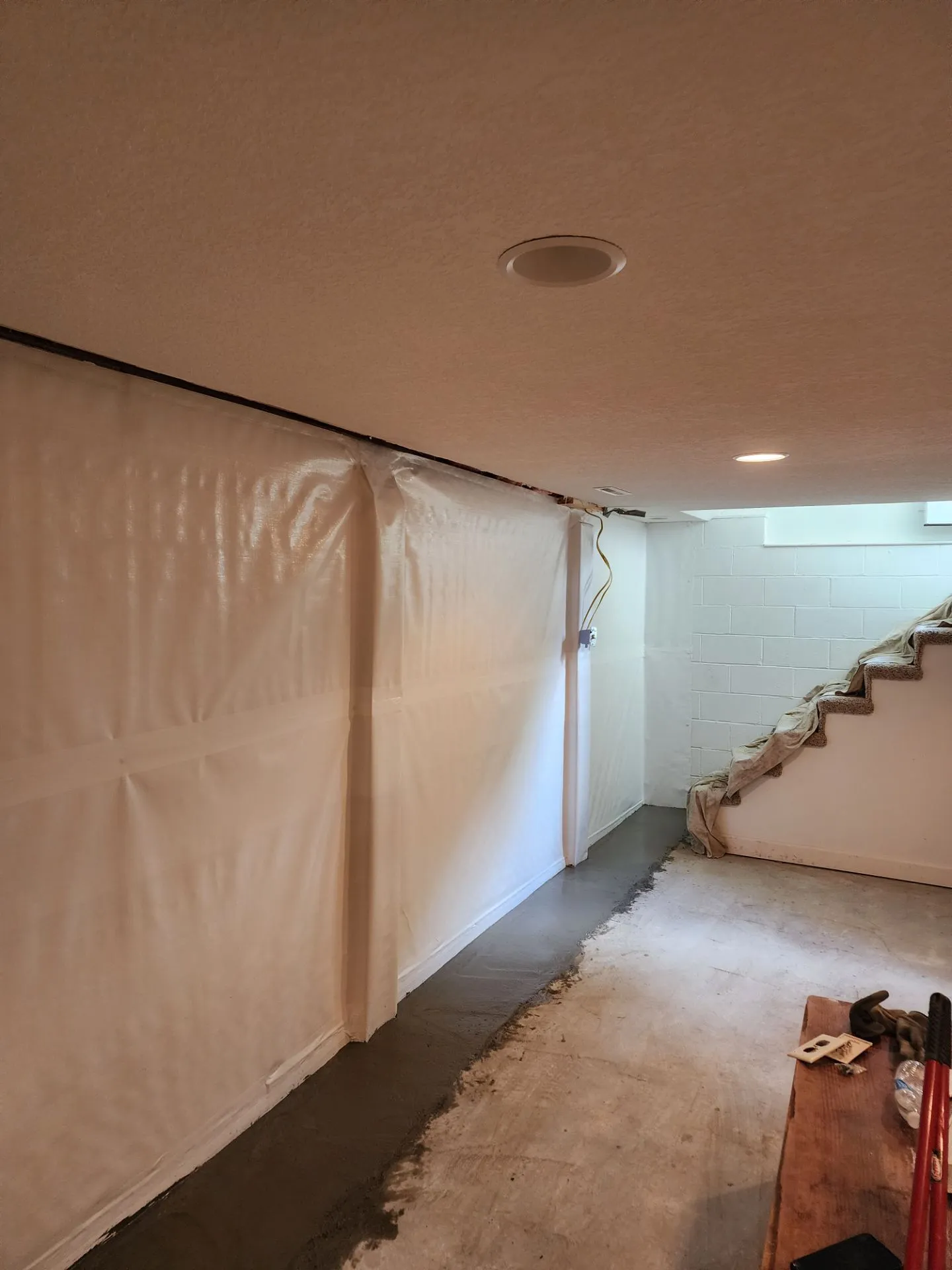

Eastern Johnson County — including much of Olathe — sits on Peorian loess, a Wisconsinan-age windblown silt layer up to 17 feet thick. This loess is stable when dry but loses structural integrity when saturated, which happens regularly given Olathe's 42 inches of annual rainfall and May peak of 5.7 inches. The loess layer creates a deceptive situation: water moves through the silt relatively easily until it hits the dense Wymore-Ladoga clay underneath, where infiltration essentially stops. That creates a perched water table effect that sends hydrostatic pressure sideways against your basement walls. A saturated clay layer weighs 120–130 pounds per cubic foot, and at a 4-foot water table depth, your 8-foot wall faces roughly 250 PSF at its base. Interior waterproofing systems ($4,000–$7,000 for a complete install) with proper drain tile address this specific layered-soil problem.

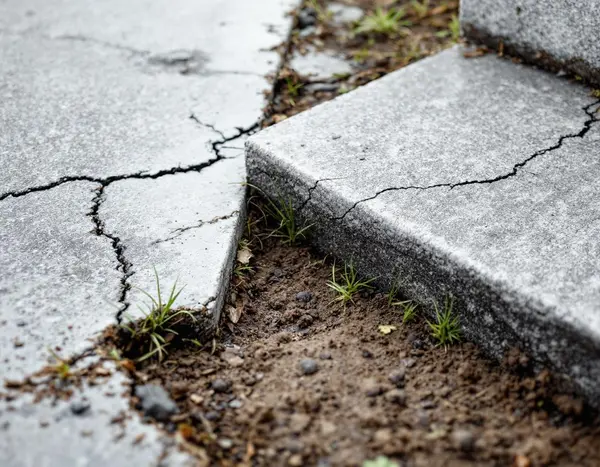

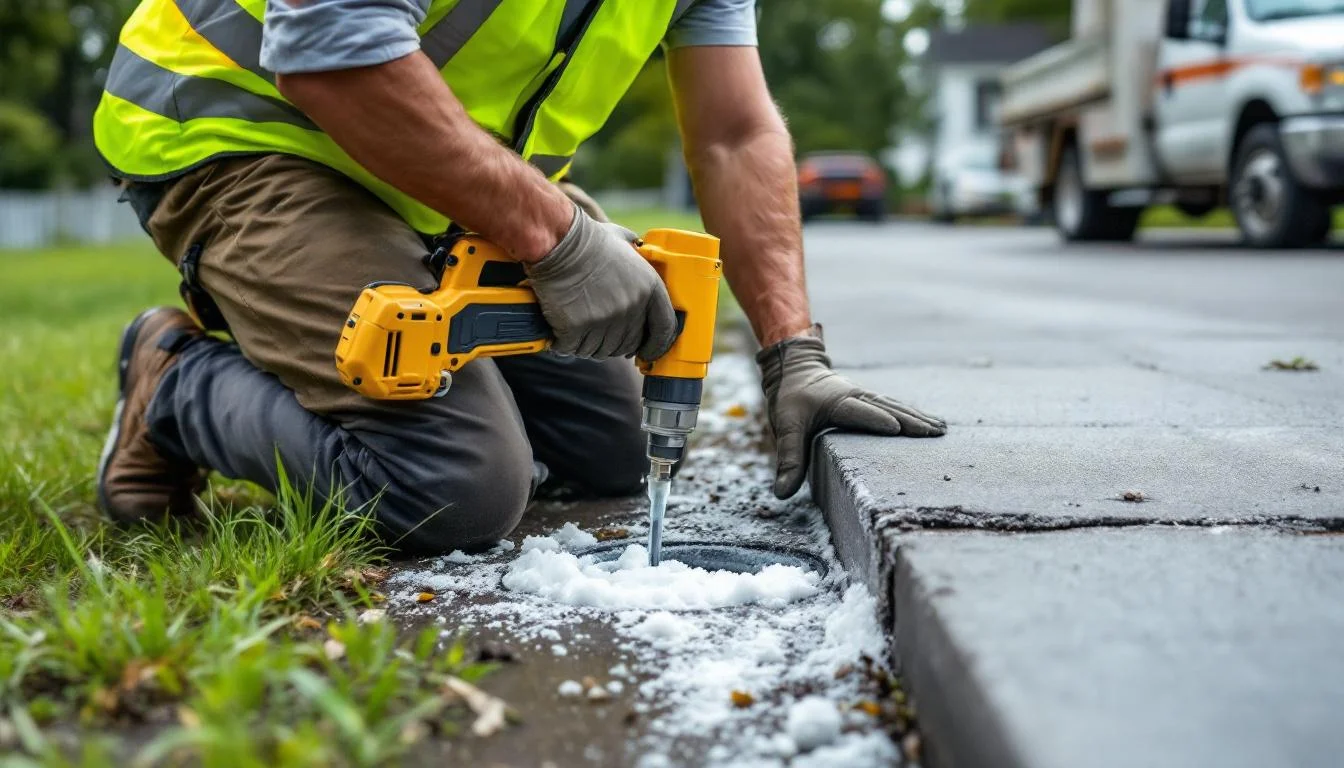

Split-levels from Olathe's 1970s–90s building era — which represents about 28% of the city's housing stock — commonly develop two types of problems on Johnson County's high-shrink-swell soil. First, differential settlement where the lower-level slab drops away from the upper structure, typically requiring 4–8 push piers at $1,250–$2,500 each. Second, lateral wall movement in the below-grade portion, which may need carbon fiber straps at $350–$1,000 per strap or wall anchors at $400–$700 each. The average Kansas City metro foundation project runs about $4,500, but mid-Olathe split-levels with both settlement and lateral issues can range from $5,000 to $12,000 depending on severity. Polyjacking for settled garage slabs or stoops adds $800–$2,500. Getting an assessment before cracks widen through another freeze-thaw season keeps costs on the lower end.

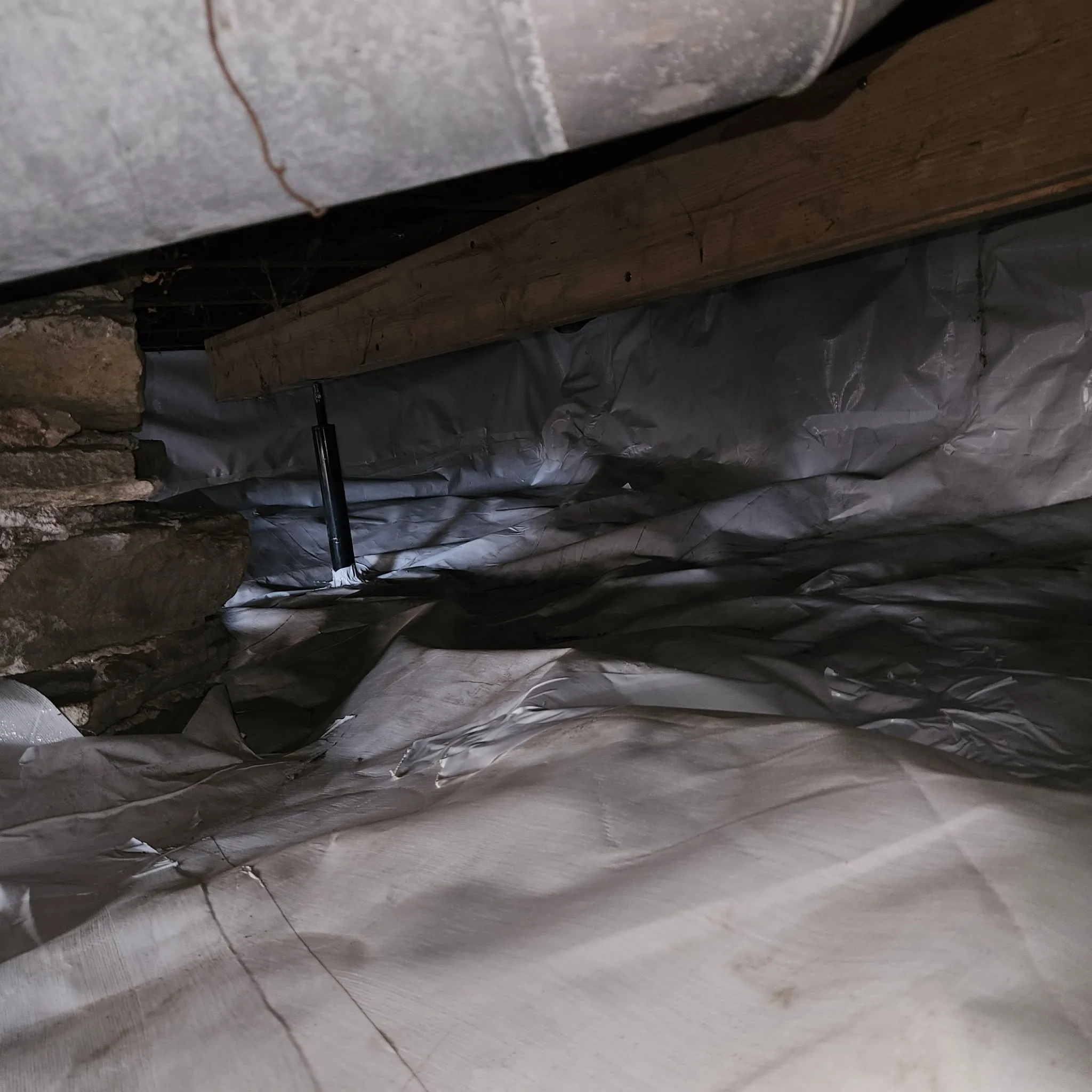

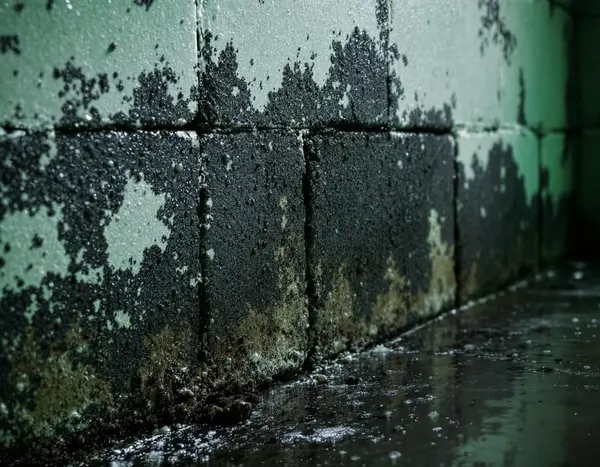

Many Olathe homes — particularly ranch-style houses from the 1940s–60s that make up the city's largest housing era (30.72% of stock) — have vented crawlspaces that were standard practice at the time. In Johnson County's climate, those vented spaces average 77% relative humidity according to the Advanced Energy study, well above the 60% mold threshold. Sealed crawlspaces drop to roughly 52% RH. The stack effect pulls 40–50% of your first-floor air from below, so a damp, moldy crawlspace directly affects your living space. Olathe's Group D soil classification means surface water pools rather than draining, keeping the ground around your crawlspace saturated longer than in areas with better-draining soil. Encapsulation in Olathe typically costs $5,500–$8,000 and includes vapor barrier, drainage, and dehumidification. Insulation materials may qualify for a federal 30% tax credit.

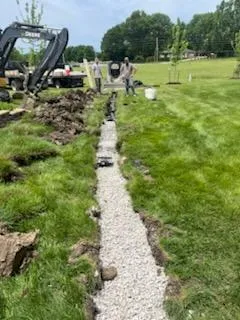

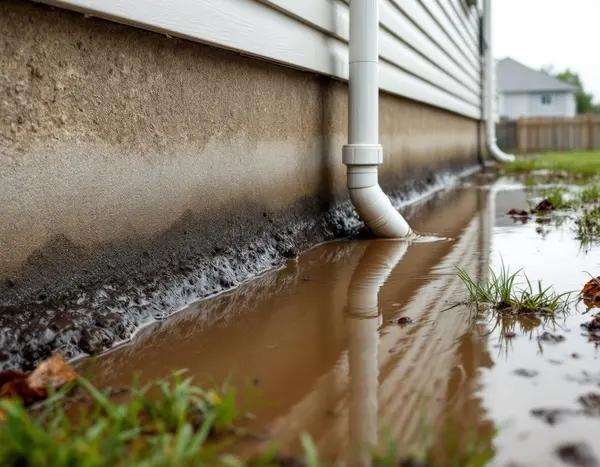

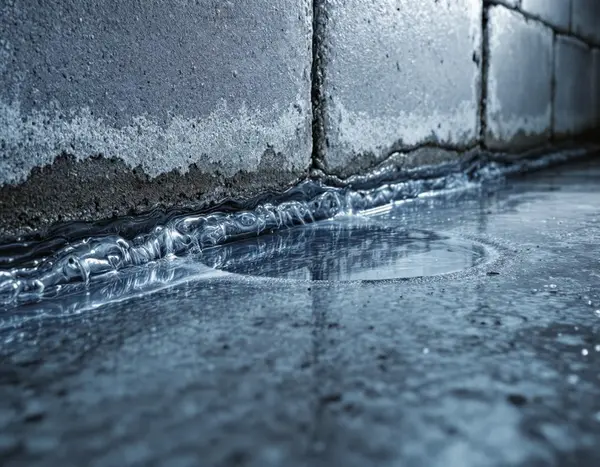

South Olathe subdivisions built after 2000 near Cedar Creek and Black Bob sit in an active drainage corridor where surface water concentrates before reaching the creek system. Even though these homes have modern poured concrete foundations, Johnson County's Group D soils — the lowest infiltration class in the USDA system — generate maximum surface runoff during Olathe's heavier rain events, especially the May peak of 5.7 inches. Water that can't soak into the Wymore-Ladoga clay flows overland toward low points, and Cedar Creek's tributaries create natural collection zones that raise local water tables. Homeowners in these neighborhoods often see basement seepage within 5–10 years of construction, not because the foundation was poorly built, but because hydrostatic pressure at 250 PSF against an 8-foot wall exceeds what standard damp-proofing coatings can resist long-term. French drains at $49–$59 per linear foot combined with interior drainage provide reliable relief for these specific drainage patterns.

Olathe receives 42 inches of rain annually, but the distribution is heavily weighted toward spring — May alone averages 5.7 inches. That rain arrives just as Johnson County's Wymore-Ladoga clay is rehydrating from winter, when the soil transitions from contracted (dry, cracked) to expanded (saturated, sealed). During this transition, surface water enters gaps between the soil and your foundation wall through shrinkage cracks from winter, then gets trapped as clay expands and seals the surface. Meanwhile, 100-plus freeze-thaw cycles through winter may have opened new cracks in your foundation. The combination of spring saturation and winter damage is why most Olathe waterproofing calls come in April through June. Scheduling an inspection in late winter — before the rain peaks — gives you time to install interior drainage or French drain systems before hydrostatic pressure builds against your basement walls.
