Lenexa KS Foundation & Waterproofing for Shifting Clay Soils

The majority of Lenexa's housing stock was built during the 1980s-90s boom, putting most homes in the 30-to-40-year range — exactly when cumulative soil movement on Johnson County's Wymore-Ladoga clay produces visible structural damage. This clay has a USDA "very high" shrink-swell rating with 60-80% clay content, meaning it expands when wet and contracts when dry every single year. After three decades of these cycles, the incremental movement adds up. A wall that shifted 1/16 inch per year has now moved nearly two inches total. Lenexa's gently rolling terrain also means drainage patterns around your home may have changed as neighboring properties regraded or added impervious surfaces. Many of these homes have never had foundation or waterproofing work, so there's no existing mitigation in place. This is the first major repair window for most of the city.

Eastern Johnson County, including much of Lenexa, sits on Peorian loess — Wisconsinan-age windblown silt deposits that reach up to 17 feet thick in some areas. This loess is structurally adequate when dry but becomes highly compressible and unstable when saturated. With 42 inches of annual rainfall and Hydrologic Soil Group D clay beneath it producing maximum runoff, water accumulates in this loess layer rather than draining through it. Your foundation may have been stable for years on dry loess and then suddenly settle when a wet spring saturates the layer. Push piers in Lenexa often need to extend through the full loess deposit to reach competent bearing material — typically limestone bedrock or dense glacial till below. A pier that stops in the loess layer is sitting on the same unstable material that caused the settlement. Proper load testing during installation confirms the pier has reached adequate depth for your specific lot.

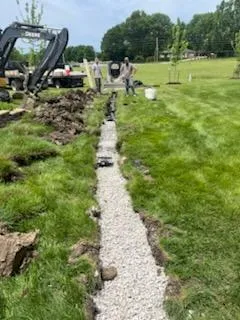

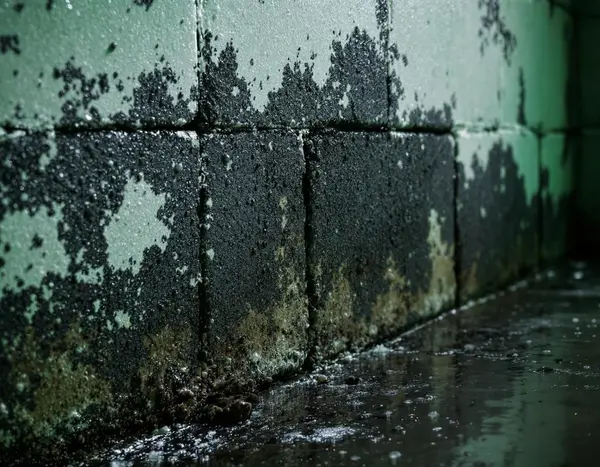

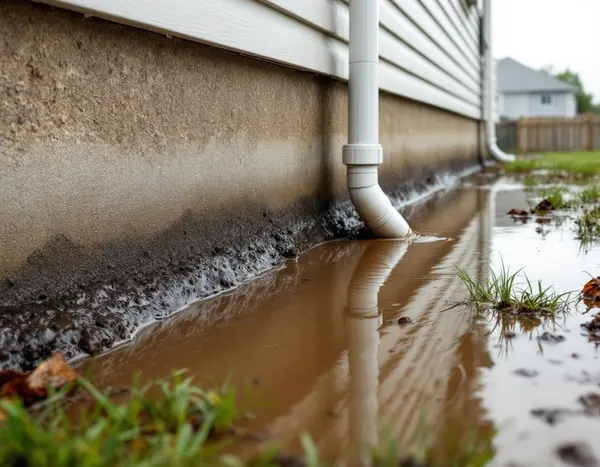

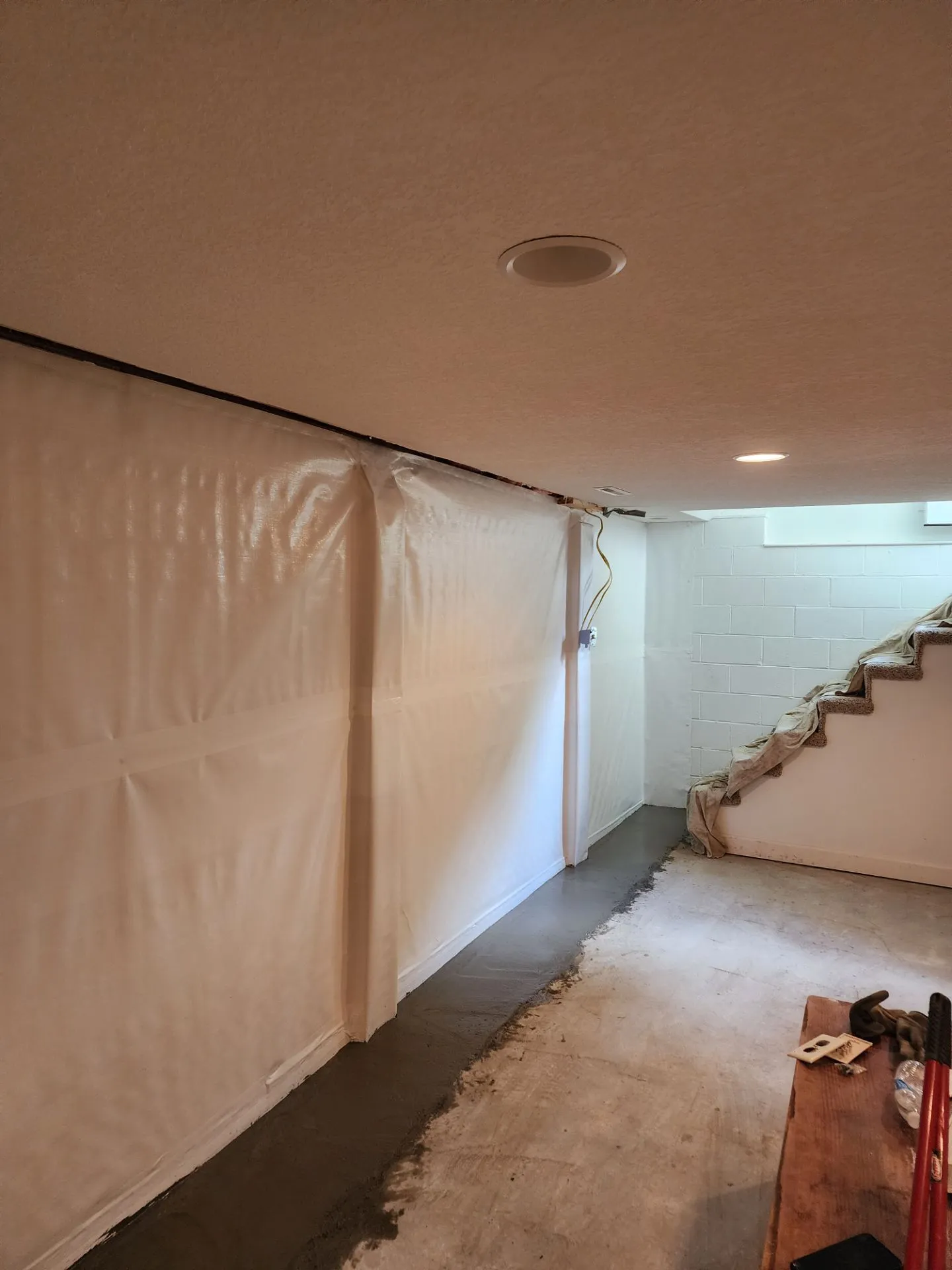

A complete interior waterproofing system in Lenexa typically runs $4,000 to $7,000, with drain tile installation averaging $49 to $59 per linear foot. The average Kansas City metro waterproofing project costs around $3,708, though Lenexa homes on low-lying lots with significant hydrostatic pressure often exceed that figure. Johnson County's Hydrologic Soil Group D clay has the lowest infiltration rate in the USDA classification — water doesn't percolate through it, it runs off or pools against your foundation walls. An 8-foot basement wall with a water table at 4 feet faces roughly 250 PSF of hydrostatic pressure at its base, with saturated clay weighing 120-130 pounds per cubic foot. Interior drain tile and sump systems manage this pressure by giving water a controlled path away from the wall before it forces through cracks or joints. Exterior approaches are effective but cost more due to excavation, particularly on Lenexa's established lots with mature landscaping and tight setbacks.

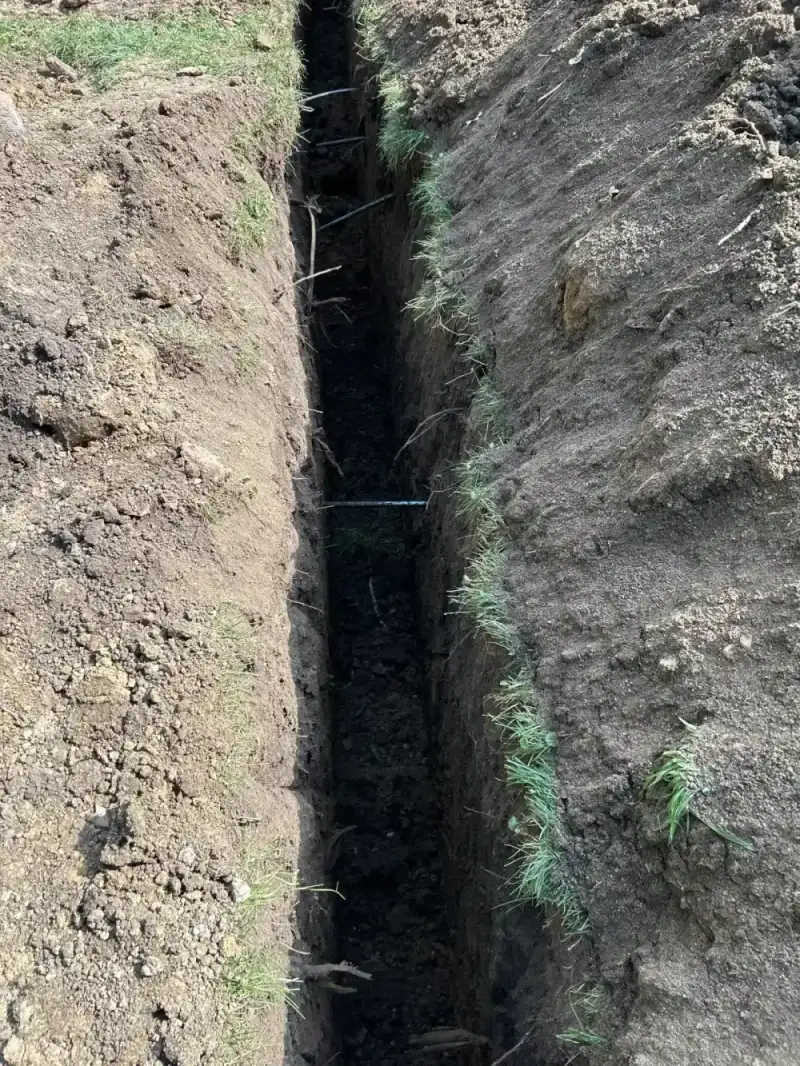

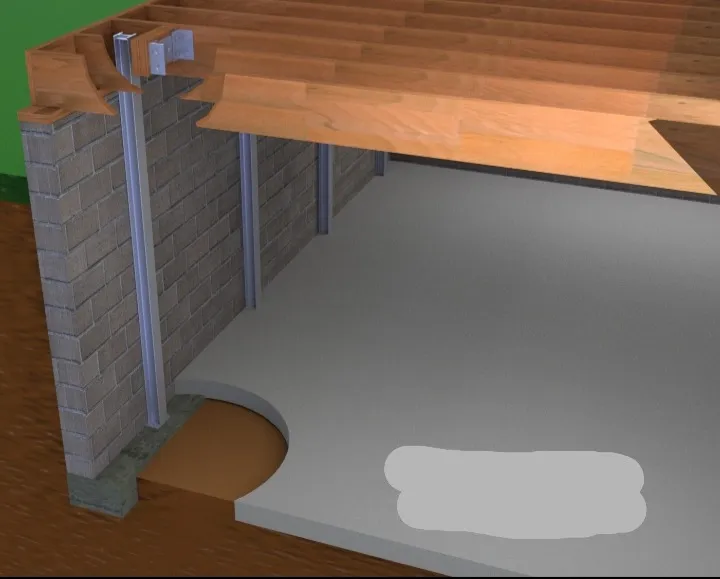

Old Town Lenexa contains pre-1960 homes — some dating to the city's earliest development — with stone and block foundations that behave very differently than the poured concrete walls in 1980s-90s subdivisions like Lenexa Hills. Block foundations fail at mortar joints, producing stair-step cracking and horizontal shear along specific courses. Stone foundations can shift at individual stones, creating uneven settlement that's harder to predict. Poured concrete walls typically crack vertically at stress points or bow inward along the center third under lateral clay pressure. Repair methods differ accordingly: Old Town block walls often need wall anchors ($400-$700 per anchor) or carbon fiber reinforcement ($350-$1,000 per strap) to arrest bowing, while 1990s poured walls may only need crack injection and exterior drainage correction. Push piers ($1,250-$2,500 each) and helical piers ($1,800-$3,000 each) serve both eras for settlement, but installation access in Old Town's tighter lots requires careful planning.

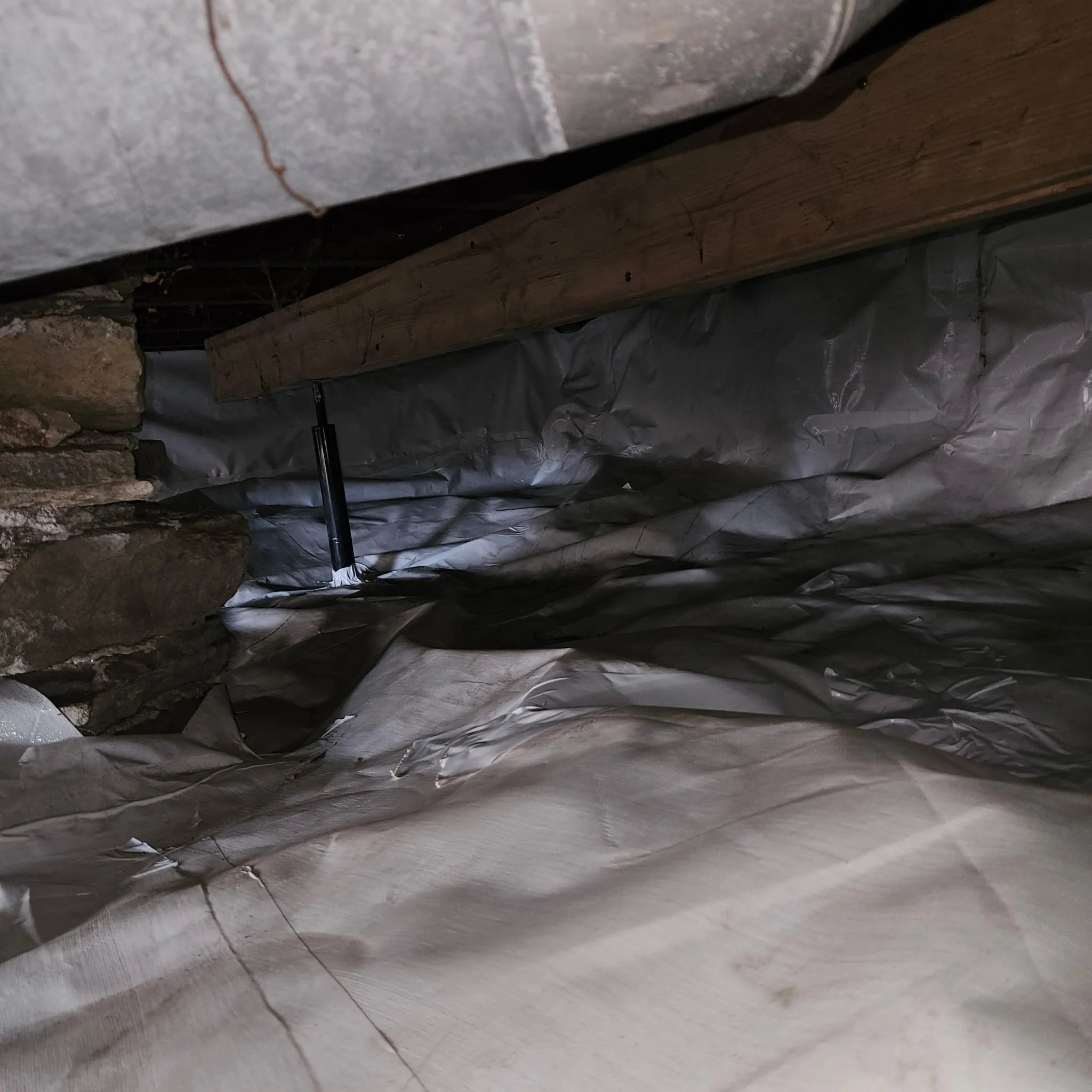

Lenexa's climate makes encapsulation one of the more defensible investments for homes with crawlspaces. Johnson County receives 42 inches of rainfall annually with a May peak of 5.7 inches, and the Wymore-Ladoga clay beneath your home holds that moisture against the crawlspace for months. An Advanced Energy study found that sealed crawlspaces maintain roughly 52% relative humidity compared to 77% in vented ones — and mold growth begins above 60% RH. The stack effect pulls 40-50% of your first-floor air from the crawlspace below, meaning whatever is growing down there is affecting the air your family breathes. Encapsulation in Lenexa typically costs $5,500 to $8,000, including vapor barrier, dehumidification, and insulation. The insulation component may qualify for a federal 30% tax credit, reducing your effective cost. Given that Lenexa homes on Johnson County clay face over 100 freeze-thaw cycles annually and persistent ground moisture, the moisture control alone justifies the investment for most crawlspace homes.

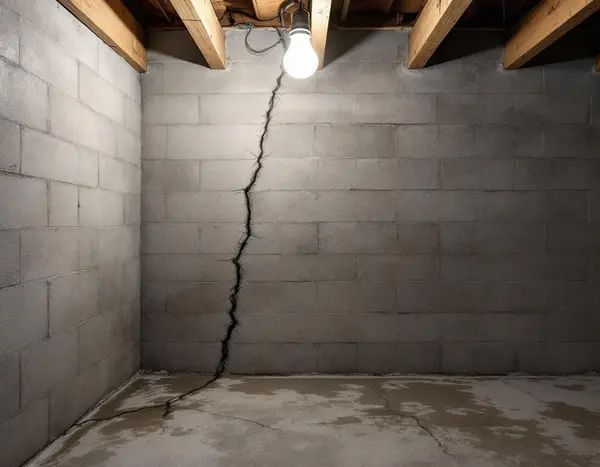

Lenexa experiences over 100 freeze-thaw cycles per year with a frost depth of 36 inches — meaning the top three feet of Johnson County's high-clay soil freezes and thaws repeatedly from November through March. Each cycle expands moisture in the soil by roughly 9% as it freezes, pushing laterally against your foundation wall. This is a different force than clay shrink-swell, which acts seasonally. Freeze-thaw is rapid and repetitive, creating fatigue stress in concrete and block walls. Combined with the clay's lateral earth pressure coefficient (K₀ of 0.5-0.7), freeze-thaw can push total loads on an 8-foot wall past 800 PSF during winter months. Homes in Lenexa's 1980s-90s subdivisions often show horizontal cracks at the frost line — about 36 inches below grade — distinct from the mid-wall bowing caused by clay expansion alone. Carbon fiber straps and wall anchors can address both forces, but the repair design needs to account for Lenexa's dual loading pattern rather than treating it as a single problem.
