Merriam KS Foundation & Waterproofing Near Turkey Creek

Most of Merriam's mid-century homes were built with block or poured-concrete foundations using minimal waterproofing — often just a thin tar coating. After 60-plus years on Johnson County's Wymore-Ladoga clay complex (60–80% clay content, USDA-rated "very high" shrink-swell), the original waterproofing has long since failed. The real driver is cumulative lateral pressure. Saturated JoCo clay exerts forces that can exceed 800 PSF against an eight-foot basement wall when the water table is at four feet. Add over 100 freeze-thaw cycles per year through a 36-inch frost depth, and the wall material fatigues. Horizontal cracks at mid-wall height and stair-step cracking in block walls are the most common patterns we see along Antioch Road and Merriam Lane. These aren't cosmetic — they indicate active structural movement that accelerates once it starts.

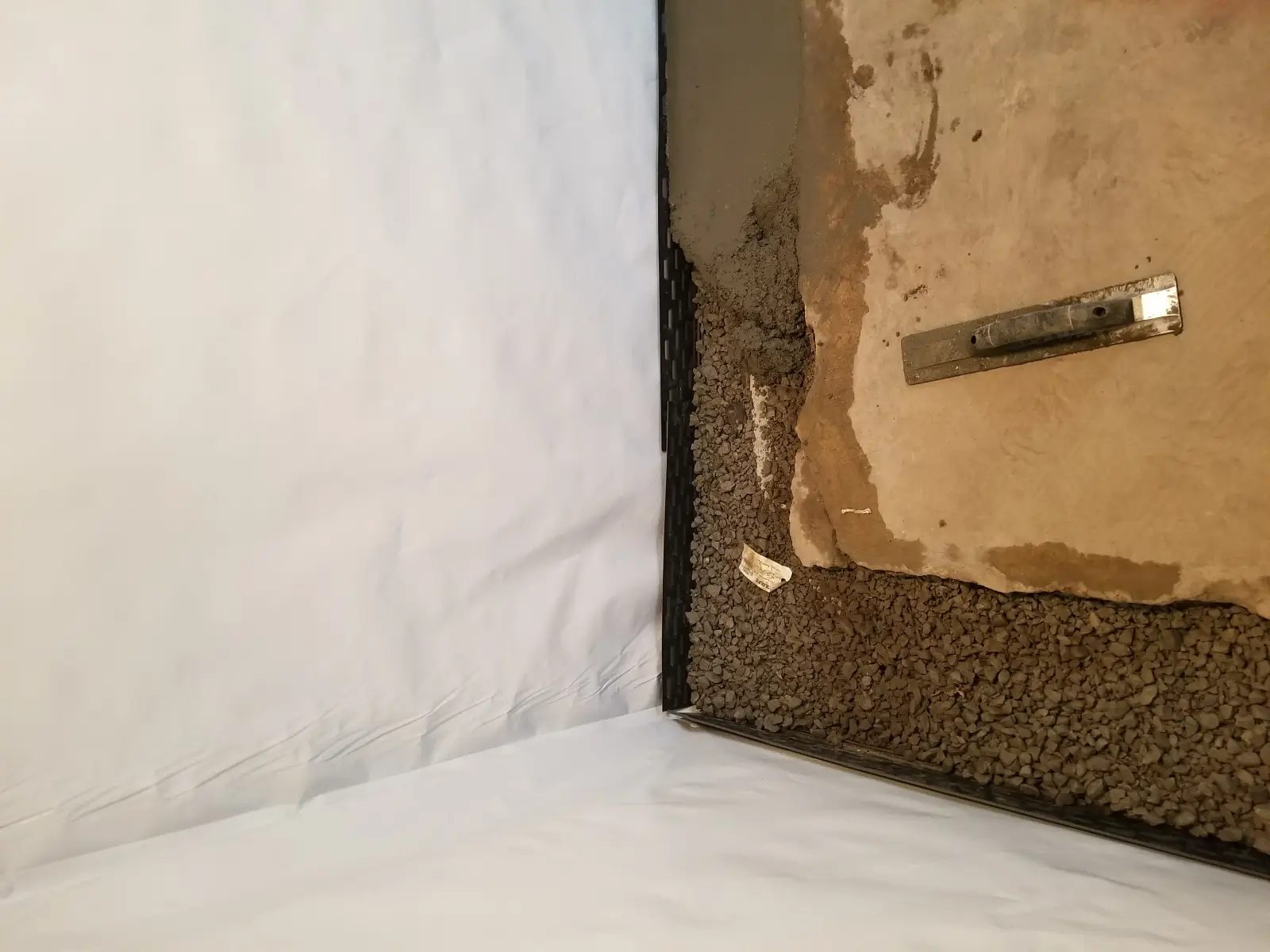

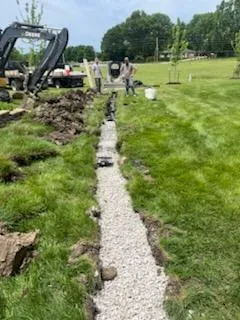

A complete interior waterproofing system in Merriam typically runs $4,000–$7,000, which aligns with the Kansas City metro average of around $3,708 for simpler projects. Most Merriam homes need a full perimeter drain tile system ($49–$59 per linear foot), a properly sized sump pump, and vapor barrier work. The cost depends on your basement's footprint, the severity of water intrusion, and whether wall repair is needed alongside waterproofing. Merriam's flat terrain and Hydrologic Soil Group D soil — the highest runoff classification — mean your system has to handle more water volume than homes in areas with better natural drainage. We size every Merriam sump system for the actual hydrostatic load, not a generic estimate. Homes near the SM Parkway/I-35 interchange often deal with elevated groundwater that requires higher-capacity pumps.

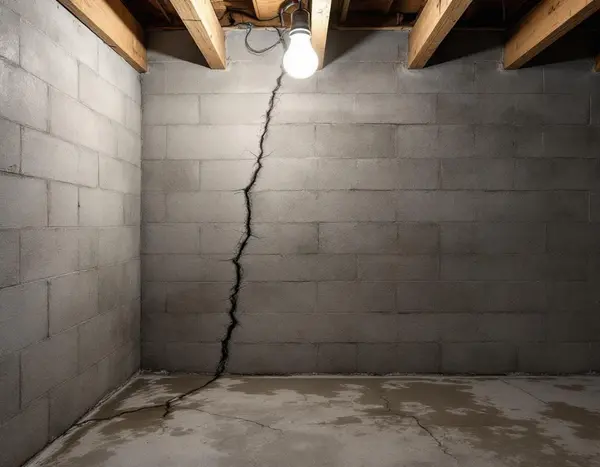

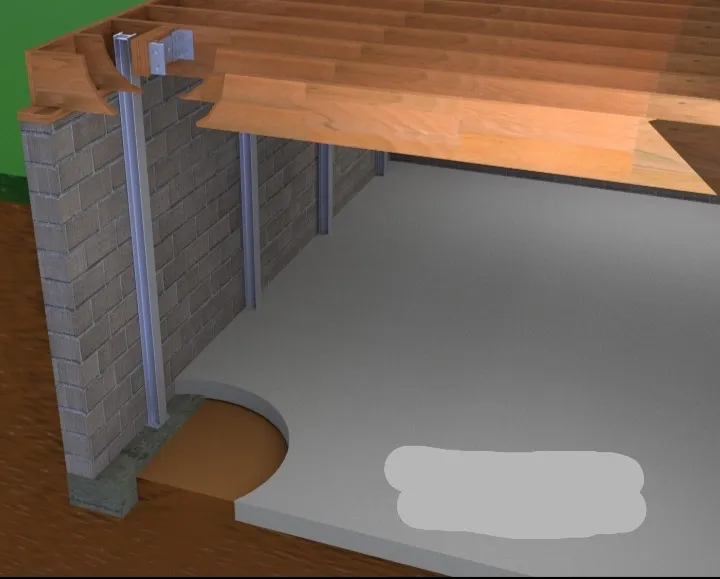

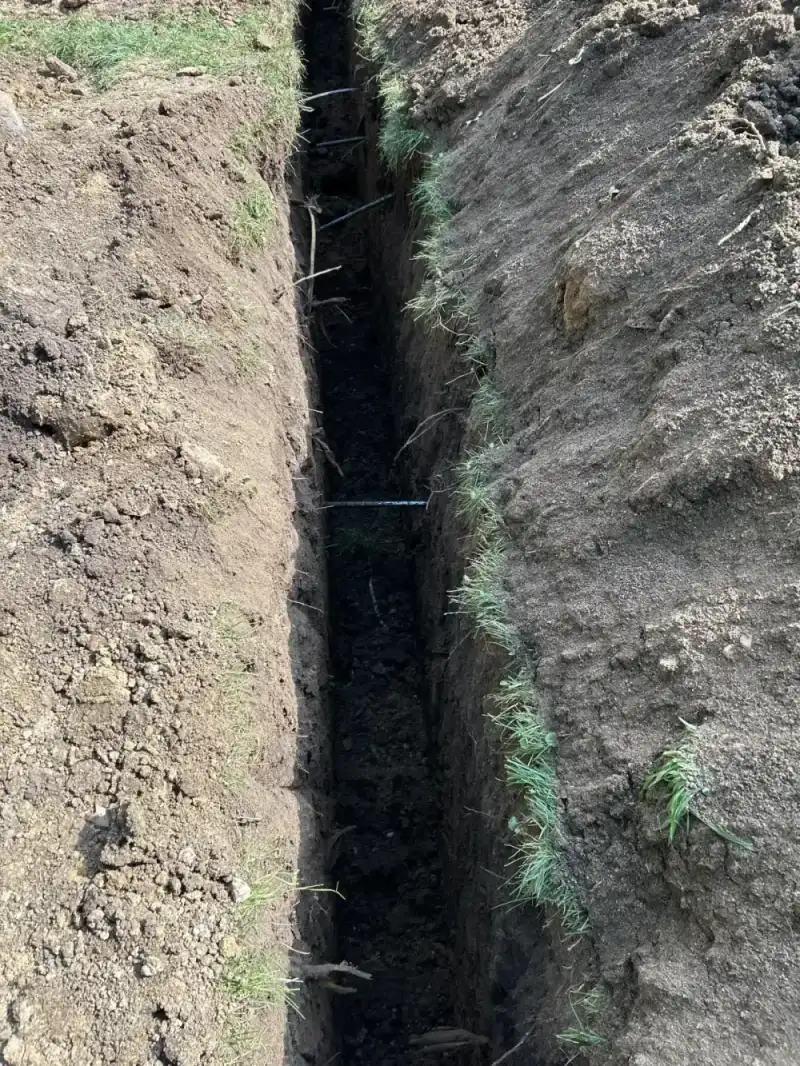

Bowing walls in Merriam result from lateral earth pressure — Johnson County's dense clay (with a K₀ coefficient of 0.5–0.7) pushes against your basement walls, and when that clay is saturated, combined earth-plus-water forces can exceed 800 PSF on an eight-foot wall. The Peorian loess layer in eastern Johnson County, up to 17 feet thick, adds instability when wet. Yes, most bowing walls can be stabilized without replacement. Carbon fiber straps ($350–$1,000 per strap) work well for walls with less than two inches of inward deflection — common in Merriam's 1950s block basements along Merriam Lane. For more severe bowing, wall anchors ($400–$700 each) or steel I-beams ($200–$500 per beam) provide the resistance needed against JoCo clay's ongoing pressure. We match the repair method to the actual measured deflection and soil load.

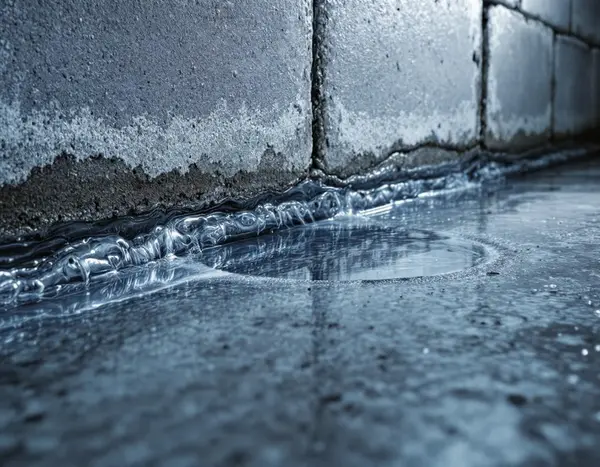

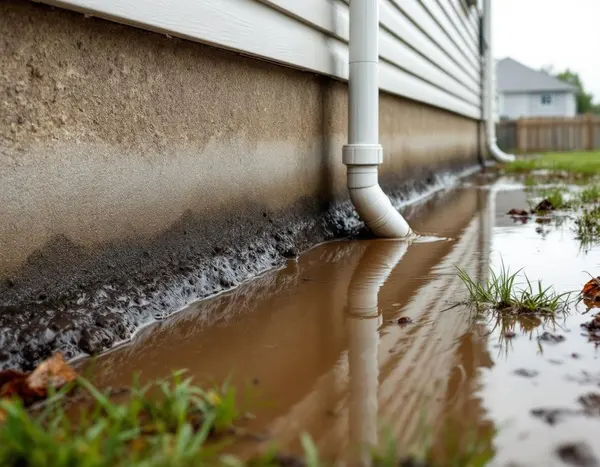

Yes, measurably. Merriam's combination of flat terrain, Hydrologic Soil Group D soil (virtually zero infiltration), and elevated groundwater creates higher sustained hydrostatic pressure against foundations than you'll find in better-drained Johnson County cities like Leawood or parts of Overland Park with more topographic relief. An eight-foot basement wall with a water table at four feet bears roughly 250 PSF of hydrostatic pressure at its base — and in Merriam, that water table stays elevated longer after rain events because there's no slope to move groundwater laterally. The 42 inches of annual rainfall, peaking at 5.7 inches in May, keeps the Wymore-Ladoga clay perpetually near saturation through spring and early summer. This is why Merriam homes often need both structural repair and waterproofing as a combined solution rather than one or the other.

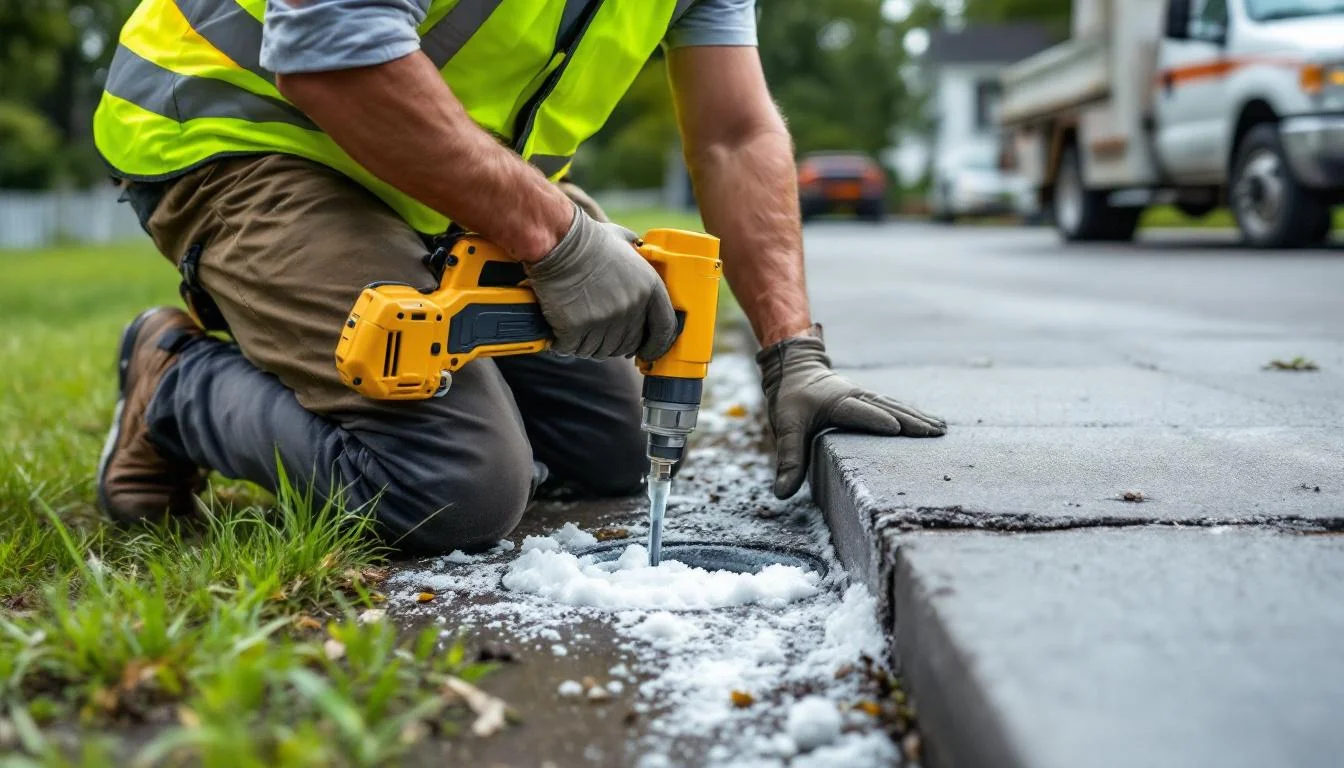

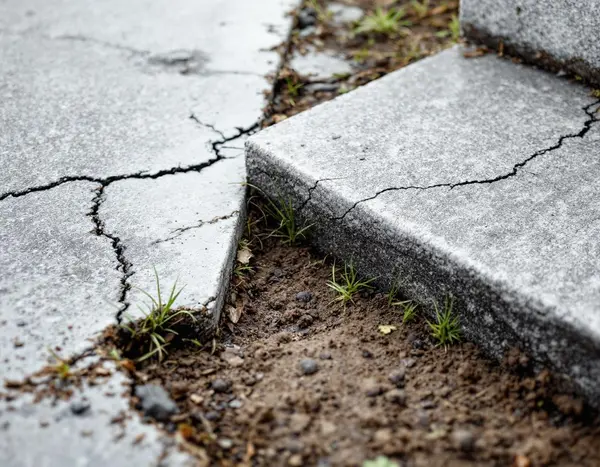

Polyjacking is highly effective for lifting settled concrete in Merriam, but calling any repair "permanent" on Johnson County's high-shrink-swell clay requires honesty. The Wymore-Ladoga complex expands and contracts with every wet-dry cycle, and Merriam gets over 100 freeze-thaw cycles annually through a 36-inch frost depth. Polyurethane foam is lighter than mudjacking material (reducing load on already weak soil), water-resistant, and dimensionally stable — it won't wash out or compress. Most polyjacking work in Merriam lasts 8–15 years or longer, depending on drainage conditions around the slab. We often combine polyjacking with drainage corrections to address why the soil settled in the first place. For Merriam driveways and walkways on flat lots where water pools, improving surface grading alongside the lift significantly extends the repair's lifespan.

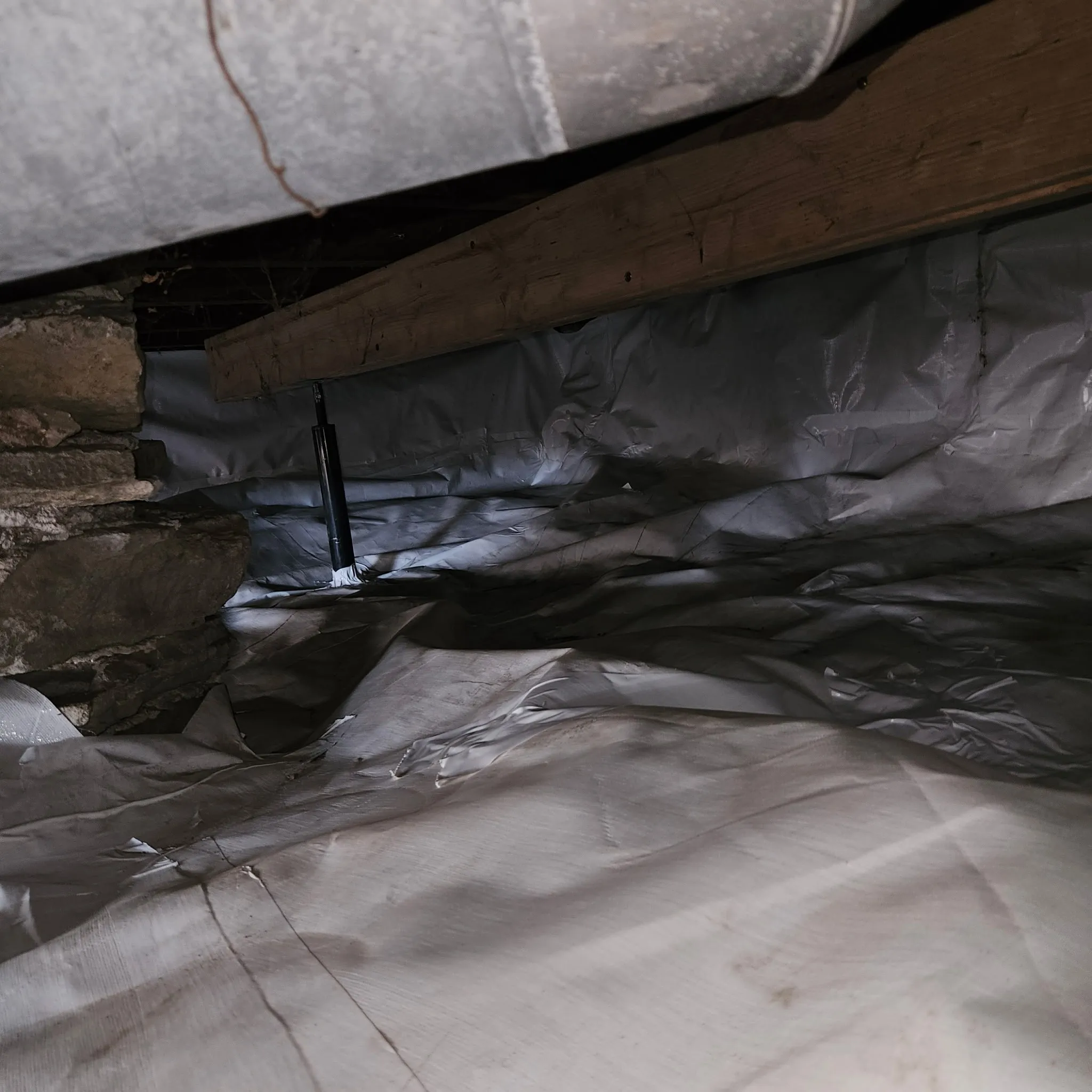

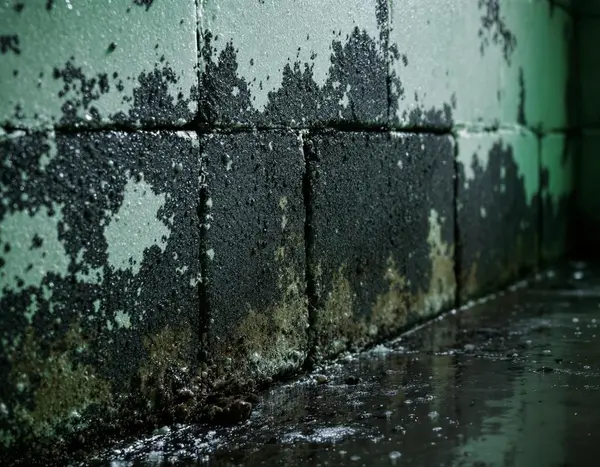

Merriam crawlspace homes — particularly the ranch-style builds from the 1950s and 1960s along Antioch Road — are strong candidates for encapsulation. The stack effect pulls 40–50% of your first-floor air from the crawlspace below, and a vented crawlspace on Johnson County's high-groundwater clay averages 77% relative humidity. That's well above the 60% threshold for mold growth. A sealed, encapsulated crawlspace drops humidity to around 52% (per the Advanced Energy study). Encapsulation in Merriam typically costs $5,500–$8,000, depending on crawlspace size and whether structural repairs or drainage work are needed alongside. The insulation materials included in encapsulation qualify for a federal 30% tax credit, which reduces your net cost. Given Merriam's flat terrain and Hydrologic Soil Group D soil driving moisture upward year-round, encapsulation isn't optional for crawlspace homes — it's a structural and health necessity.
