Liberty MO Foundation Contractors for Ridge & Valley Homes

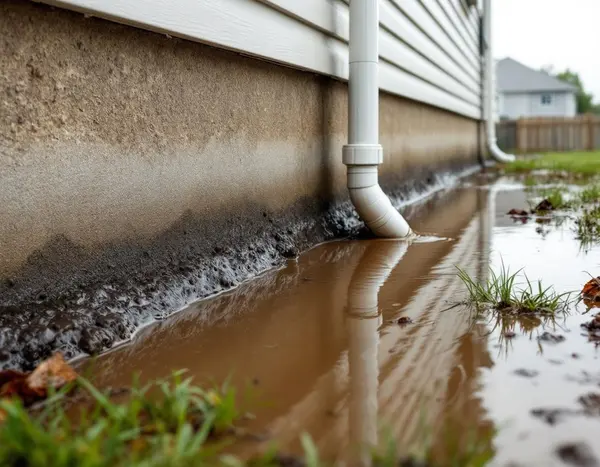

Liberty's terrain is the key differentiator. Hilly lots channel surface runoff directly toward the downhill side of your foundation, and Clay County's soil is classified as Hydrologic Soil Group D — the lowest infiltration category, meaning nearly all of Liberty's 42 inches of annual rainfall becomes runoff instead of soaking in. On a sloped lot, that water collects against your foundation wall. Saturated clay weighs 120–130 pounds per cubic foot, and an 8-foot basement wall with a 4-foot water table faces roughly 250 PSF of hydrostatic pressure at the base. Add lateral earth pressure from Clay County's expansive soil (K₀ of 0.5–0.7 for clay), and total pressure can exceed 800 PSF. Flat-lot homes in other parts of the metro simply don't face this combined loading. If your Liberty home sits on a slope, your foundation is working harder than most homes in the Kansas City area.

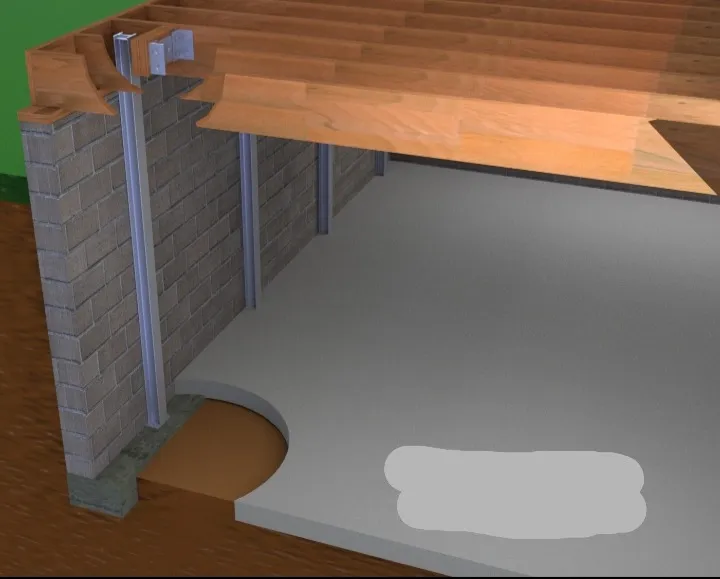

Most Liberty foundation projects fall in the range common across the Kansas City metro — an average of about $4,500, though the actual number depends on the severity and the method required. Push piers run $1,250–$2,500 per pier, and helical piers cost $1,800–$3,000 per pier. A Liberty home with moderate settlement might need 6–10 piers. Bowing wall repair is separate: carbon fiber straps cost $350–$1,000 each, wall anchors run $400–$700 per anchor, and I-beams are $200–$500 per beam. Homes in the 291 Highway developments or Lightburne built in the 1970s–1990s frequently need wall stabilization because Clay County's shrink-swell cycling has been pushing against those walls for 30–50 years. We provide line-item pricing so you can see exactly what drives the cost on your specific home.

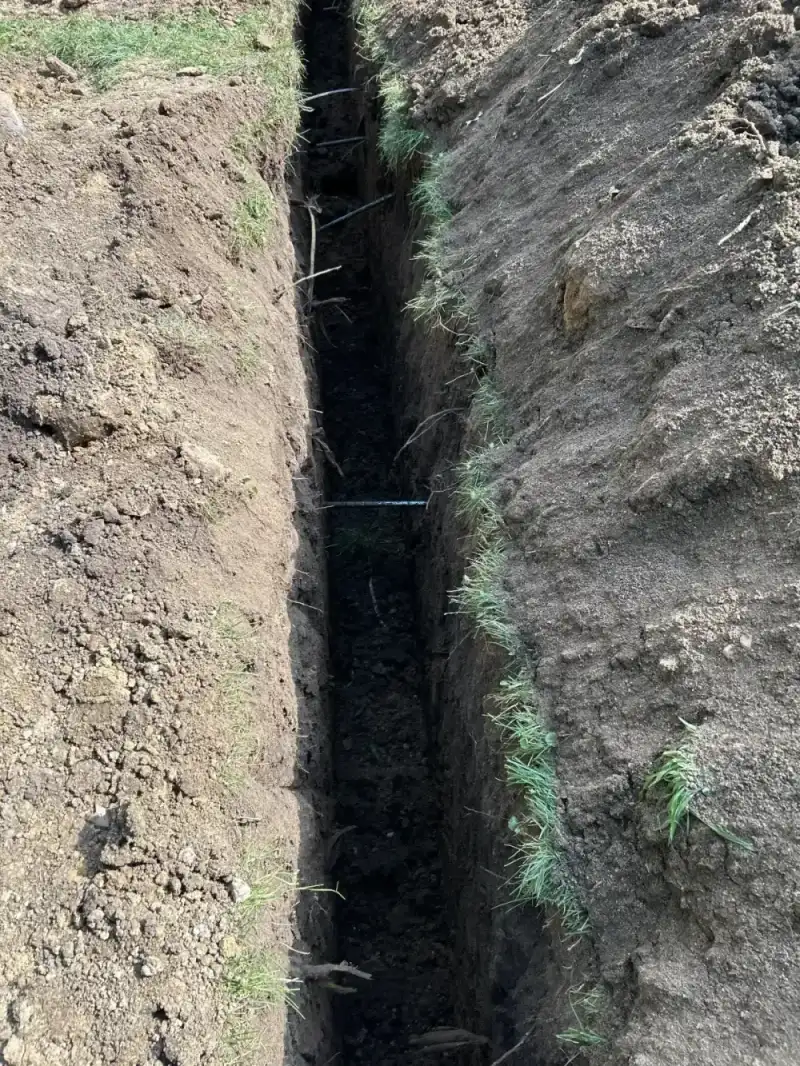

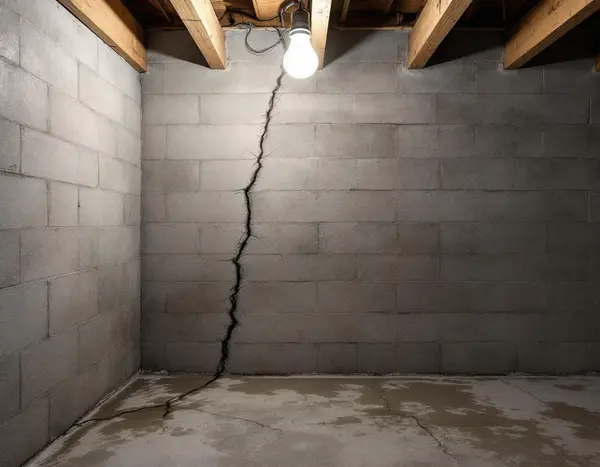

Liberty's 1970s–1990s homes make up about 28% of the housing stock, and they're now at the age where cumulative soil pressure shows its effects. Clay County's Wymore-Ladoga soil complex has 60–80% clay content with a "very high" shrink-swell rating. Each year, this soil expands when saturated by spring rains — May averages 5.7 inches alone — then contracts during summer dry spells. After 30–50 years of this cycling, the lateral pressure against your basement wall has repeatedly stressed the concrete or block far beyond what it was designed to handle. Liberty's hilly terrain makes it worse on sloped lots because water pools against the uphill wall. Poured concrete walls typically develop horizontal cracks at mid-height; block walls tend to show stair-step cracking along mortar joints. Both patterns indicate the wall is yielding to soil pressure that won't decrease on its own.

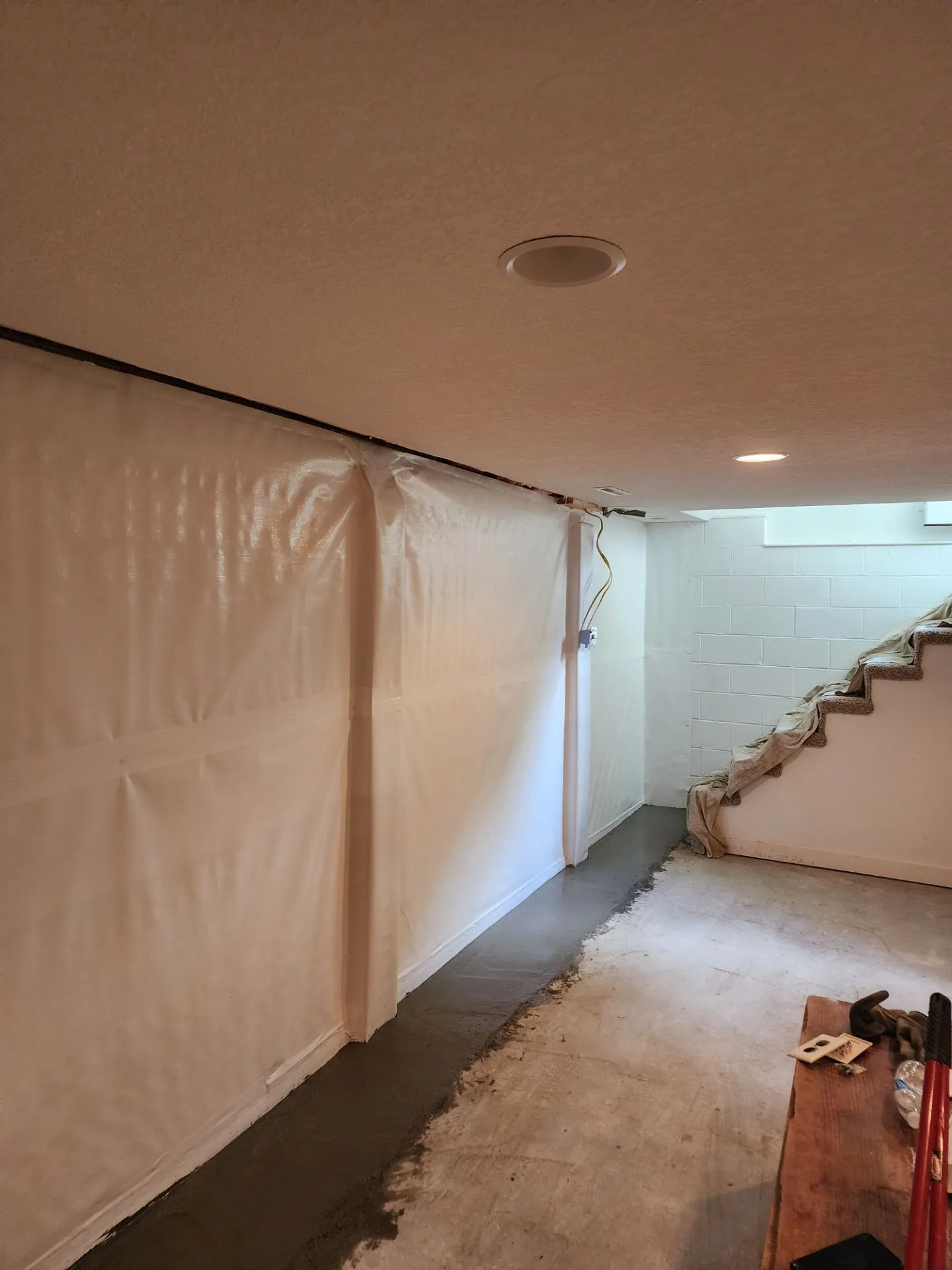

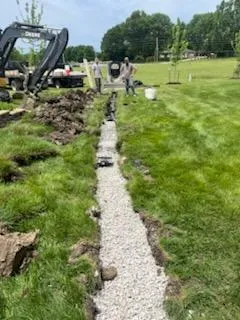

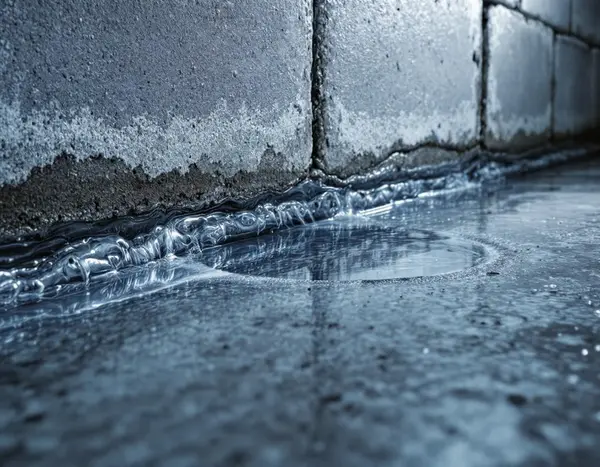

A properly designed interior waterproofing system works long-term in Liberty because it doesn't try to stop water — it manages where the water goes. Clay County's Group D soil generates heavy runoff, and on Liberty's hilly lots, hydrostatic pressure will always push water toward your foundation. Interior drain tile installed along the footing collects water before it reaches your floor and routes it to a sump system. Drain tile in the Kansas City market runs $49–$59 per linear foot, and complete interior systems for Liberty homes typically cost $4,000–$7,000. The key is designing the system for your lot's specific water flow direction. A downhill wall on a Lightburne slope needs more drainage capacity than a wall on flat ground. We size the drain tile run length, sump pump capacity, and discharge routing based on how water actually moves on your Clay County property — not a standard template.

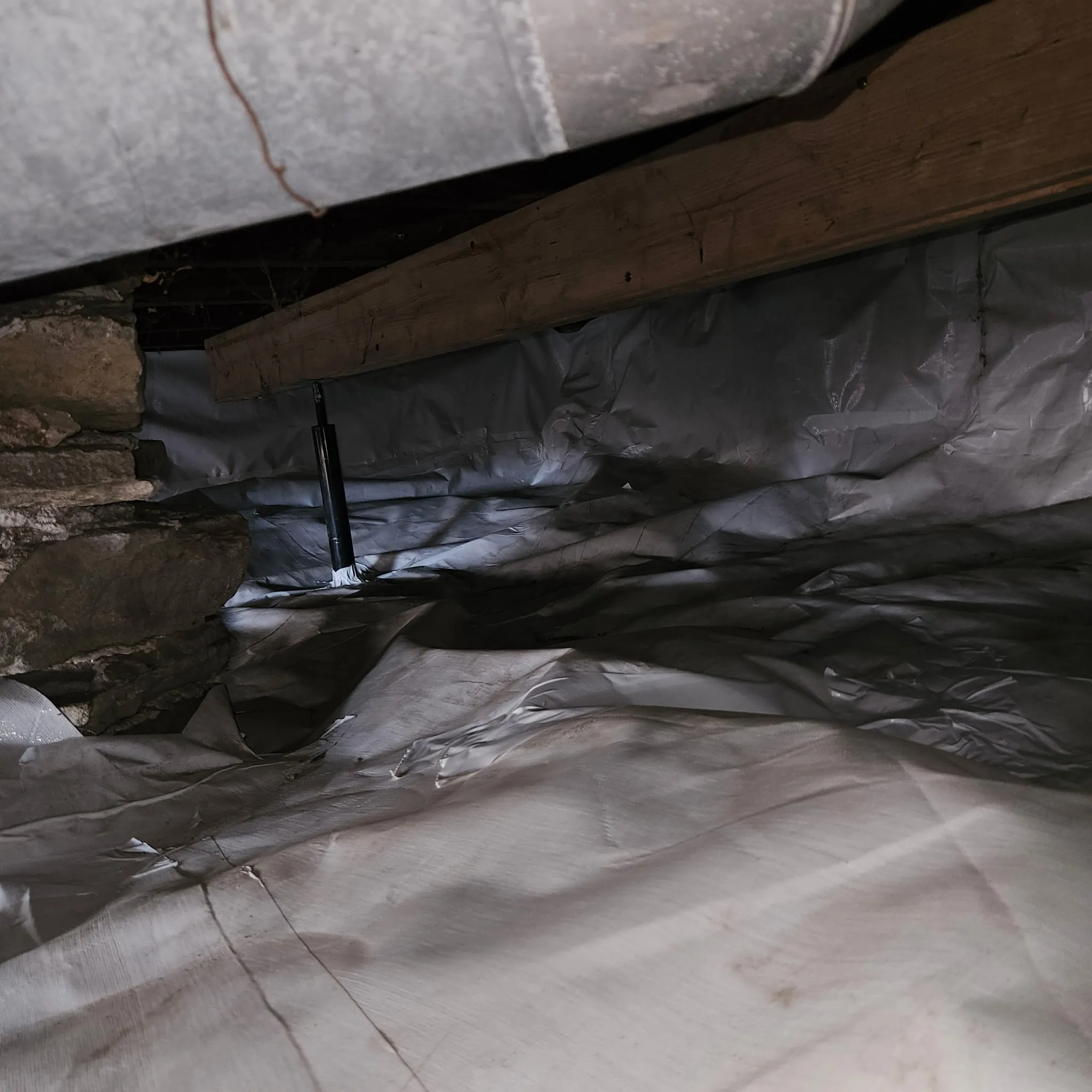

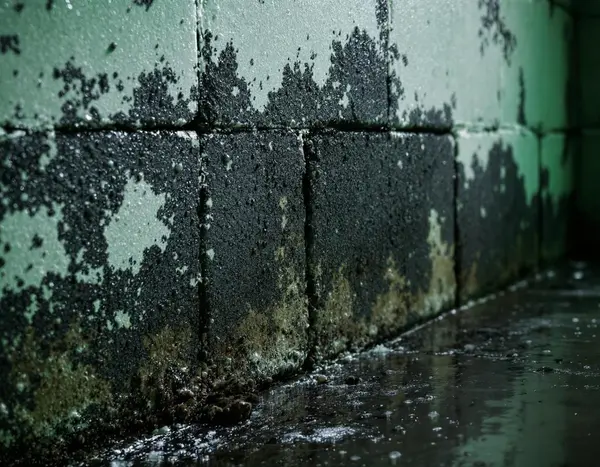

Many Liberty homes, especially ranch-style builds from the 1970s–1990s along the 291 Highway corridor, have vented crawlspaces that were standard construction for that era. The problem is that the stack effect pulls 40–50% of your first-floor air from the crawlspace below, and vented crawlspaces in Clay County's humid climate average 77% relative humidity — well above the 60% threshold where mold growth begins. An Advanced Energy study showed sealed crawlspaces drop to about 52% RH. Encapsulation in Liberty typically costs $5,500–$8,000, and insulation materials may qualify for a federal 30% tax credit. Given that Clay County's hilly terrain drives moisture toward crawlspace perimeters and the soil holds water instead of draining it, encapsulation addresses both air quality and structural moisture. Your crawlspace is either part of your home's air system or it's working against it — there's no neutral state in Liberty's climate.

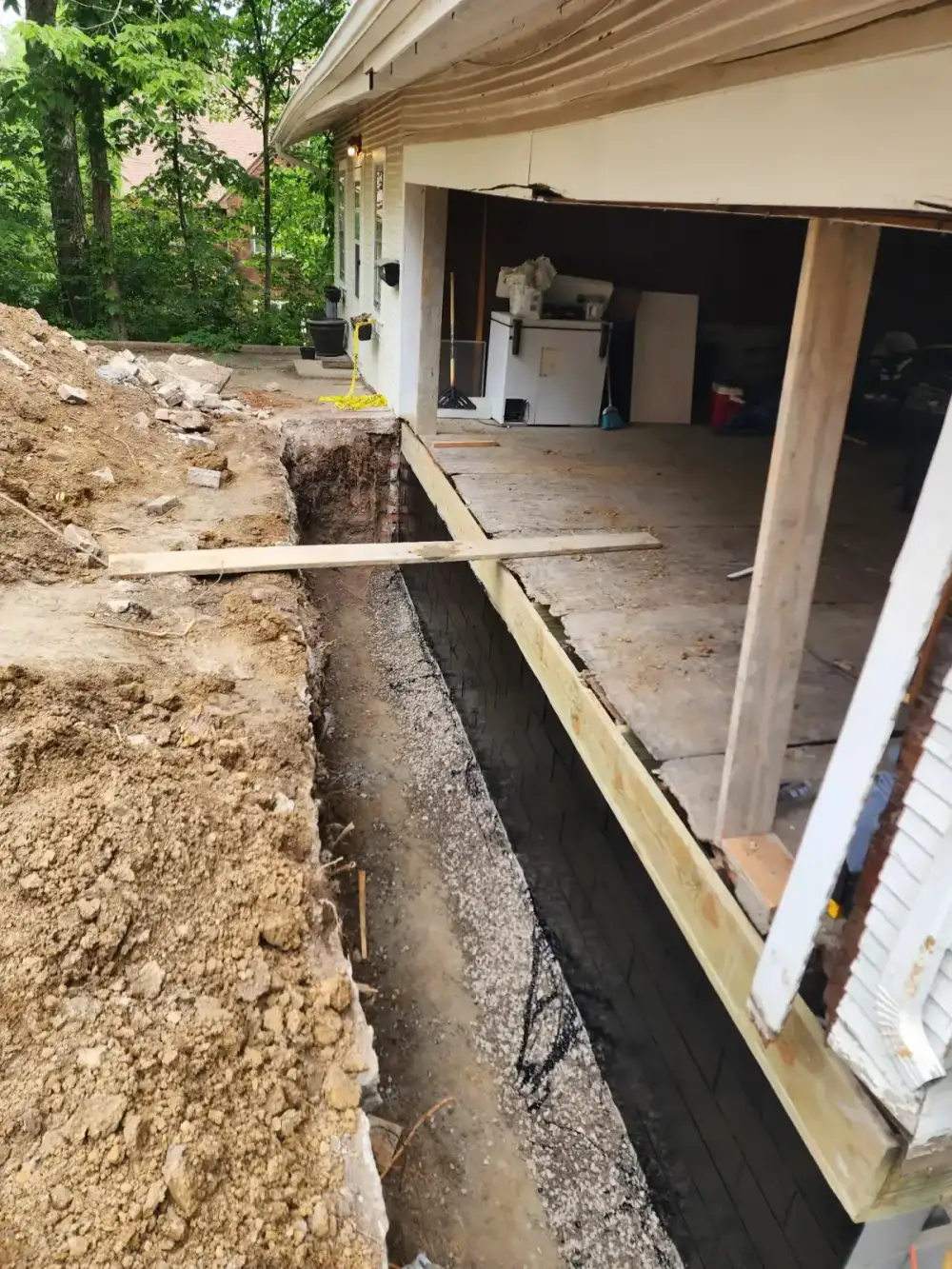

Liberty experiences over 100 freeze-thaw cycles per year, and Clay County's frost depth reaches 36 inches. Each cycle expands moisture in the top three feet of soil around your foundation, pushing against walls and footings, then contracting as it thaws. Over a single winter, your foundation may endure this lateral push-pull dozens of times. Clay County's high-plasticity soil amplifies the effect because the 60–80% clay content holds far more moisture than sandy or loamy soils — so there's more water available to freeze and expand. Footings that don't reach the full 36-inch frost depth can heave. Basement walls on Liberty's hilly lots face the added stress of freeze-thaw on the uphill side where soil stays saturated longer. Concrete that was poured during the 1970s–1990s building boom has now endured thousands of these cycles, and small cracks propagate into structural concerns. Timing repairs between late spring and early fall — after the last frost and before the ground saturates again — gives the best installation conditions in Clay County.
