Shawnee KS Foundation Contractors for Walk-Out Basements

I-435 roughly divides Shawnee into two distinct housing profiles with different foundation challenges. East of the interstate, homes built from the 1940s through the 1970s — which represent over 52% of the city's housing stock — sit on aging block and poured-concrete foundations. These structures have endured decades of lateral pressure from Wymore-Ladoga clay, which the USDA classifies as "very high" shrink-swell. Bowed walls, horizontal cracking, and water intrusion through deteriorated mortar joints are common in the SM Parkway corridor and Old Shawnee downtown areas. West of I-435, homes from the 1990s and 2000s were built on land where Peorian loess — windblown silt up to 17 feet thick in eastern Johnson County — becomes unstable when saturated. Settlement, sticking doors, and diagonal drywall cracks are more typical in these newer western subdivisions.

Foundation repair costs in Shawnee depend on the problem type and your home's construction era. Push piers, commonly used for settlement under older east-side homes, run $1,250–$2,500 per pier. Helical piers for new-construction settling in the western Monticello area cost $1,800–$3,000 each. The average Kansas City metro foundation project runs approximately $4,500, but Shawnee homes with bowed block walls may need carbon fiber straps ($350–$1,000 per strap) or wall anchors ($400–$700 per anchor) instead of — or in addition to — pier work. A 1960s block foundation along the SM Parkway corridor with three bowed wall sections will cost more than a single corner settlement issue in a 2000s home. JLB provides itemized estimates after a free inspection so you know exactly what each component costs.

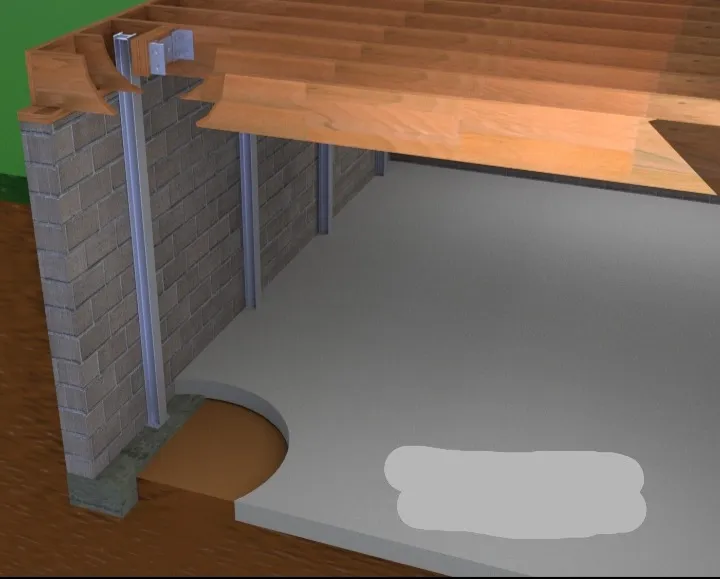

Bowing basement walls in Shawnee's older east-side neighborhoods result from lateral earth pressure driven by the Wymore-Ladoga clay's extreme expansion when wet. The at-rest earth pressure coefficient (K₀) for clay ranges from 0.5 to 0.7, and combined earth-plus-water pressure on an 8-foot wall can exceed 800 pounds per square foot. Saturated clay weighs 120–130 pounds per cubic foot, and with 42 inches of annual rainfall on Hydrologic Soil Group D soil that barely infiltrates, that weight presses against your foundation for extended periods. Homes built in the 1950s and 1960s in Old Shawnee downtown often have 8-inch block walls that were never engineered for this sustained loading. JLB addresses these walls with carbon fiber reinforcement, steel I-beams, or wall anchor systems depending on the degree of deflection.

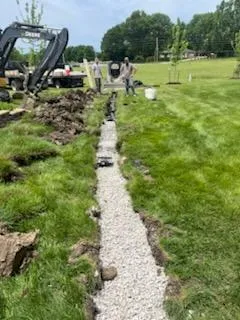

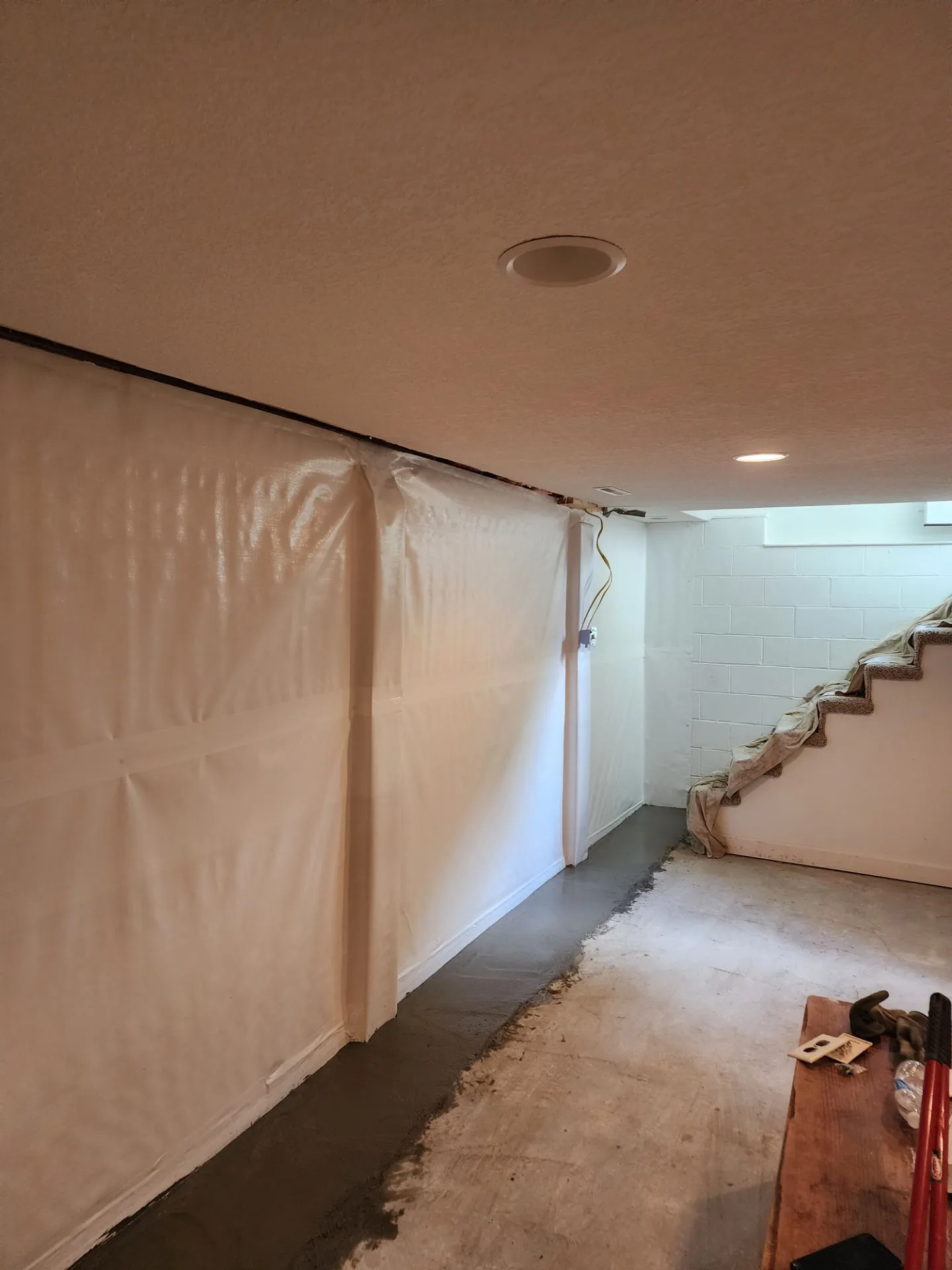

Yes — and the reason is specific to the soil profile under western Shawnee. Homes in the Monticello area and surrounding subdivisions sit on Peorian loess overlying Wymore-Ladoga clay. The loess layer becomes unstable when saturated, and the underlying Group D clay prevents downward drainage, creating a perched water table effect during Shawnee's wettest months. May averages 5.7 inches of rainfall alone. Even homes built in the 2000s with modern waterproofing membranes can develop seepage where the floor meets the wall once hydrostatic pressure builds — an 8-foot wall with a 4-foot water table generates roughly 250 PSF at the base. Interior drain tile systems ($49–$59 per linear foot) paired with a sump pump effectively manage this pressure. The average Johnson County waterproofing project costs approximately $3,708.

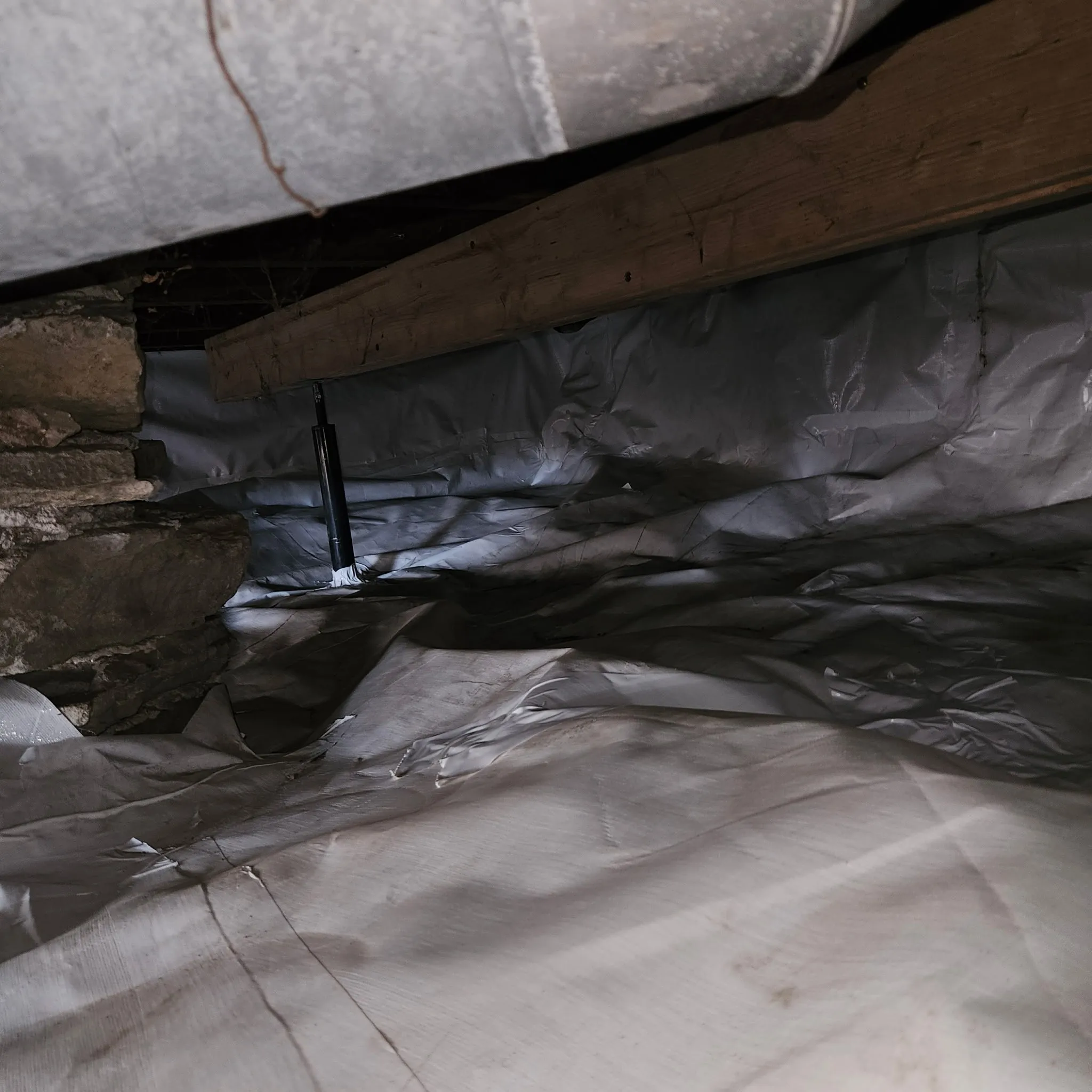

For Shawnee homes with crawlspaces — common in 1950s–1970s ranch-style construction along the SM Parkway corridor — encapsulation addresses a measurable problem. The stack effect pulls 40–50% of your first-floor air from the crawlspace below. On Johnson County's high-clay soil, vented crawlspaces regularly exceed 77% relative humidity, well above the 60% mold threshold. An Advanced Energy study found that sealed crawlspaces average just 52% relative humidity compared to 77% in vented ones. Encapsulation in Shawnee typically costs $5,500–$8,000, and the federal 30% tax credit on insulation materials offsets part of that expense. Given the Wymore-Ladoga clay's tendency to hold moisture year-round and the 42 inches of annual rainfall that feeds it, encapsulation isn't a luxury — it's a direct response to what Johnson County soil does to the air inside your home.

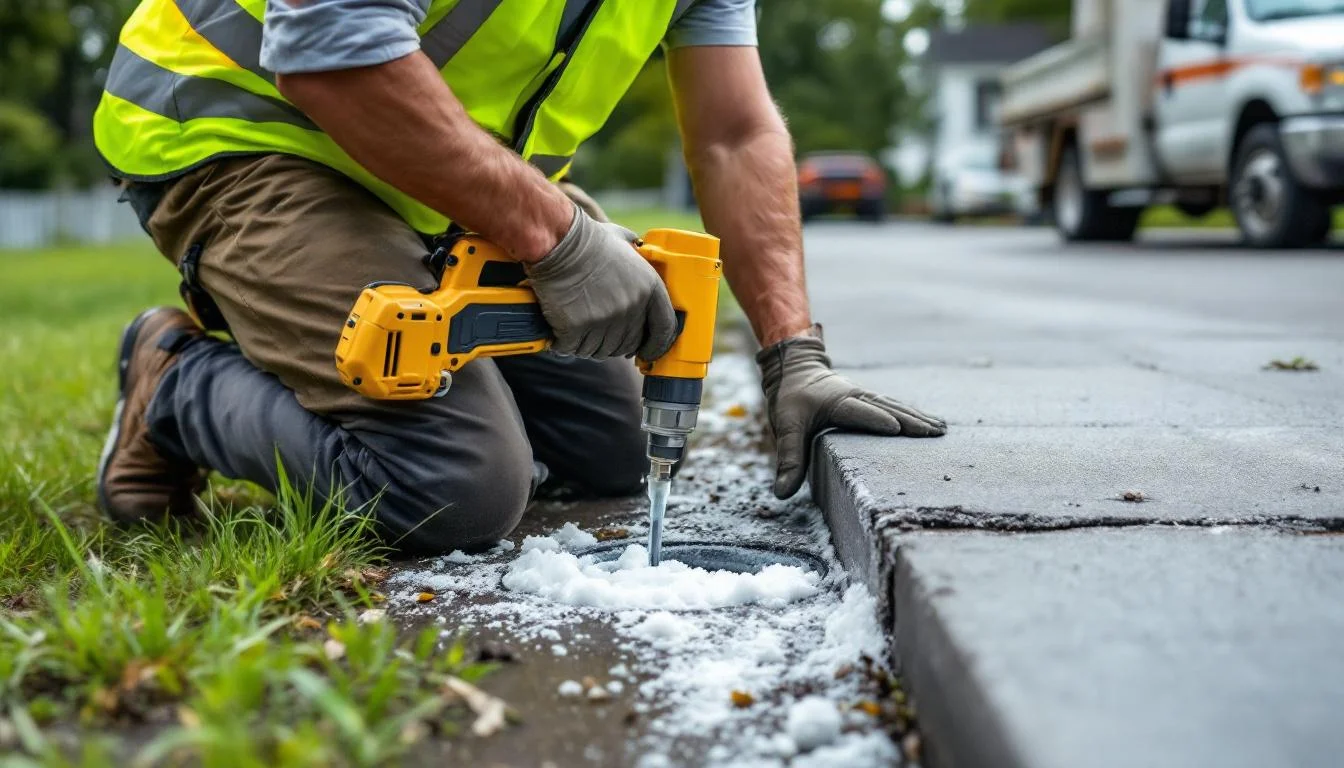

Shawnee experiences over 100 freeze-thaw cycles per year, and the 36-inch frost depth in Johnson County means the soil freezes deep enough to affect the top portion of most basement walls and all shallow footings. Clay expansion and freeze-thaw are related but cause different damage patterns. Wymore-Ladoga clay expands laterally when wet, pushing walls inward — that's the bowing you see in older SM Parkway corridor homes. Freeze-thaw, on the other hand, causes surface spalling on poured concrete, mortar deterioration in block walls, and frost heave that lifts slabs and porches. In the Monticello area, garage slabs and front stoops are particularly vulnerable because they sit at or above the frost line. JLB uses polyjacking to re-level heaved slabs and addresses wall damage with appropriate reinforcement before freeze-thaw cycling worsens existing cracks each winter.
