Prairie Village KS Foundation Repair for Post-War Cape Cods

Prairie Village has the highest lateral pressure on basement walls in Johnson County, and three factors converge to cause it. First, the Wymore-Ladoga clay complex beneath the city has 60-80% clay content with a USDA-rated "very high" shrink-swell capacity. Second, the elevated groundwater table means saturated clay pushes against your walls at 120 to 130 pounds per cubic foot — combined earth and water pressure on an eight-foot wall can exceed 800 PSF. Third, over 30% of Prairie Village homes were built in the 1940s through 1960s with block foundations where mortar joints are the weakest link. After 65 to 75 years of this pressure, block walls in neighborhoods like Corinth and along 75th Street are bowing inward at rates higher than communities in southern JoCo where the water table sits lower.

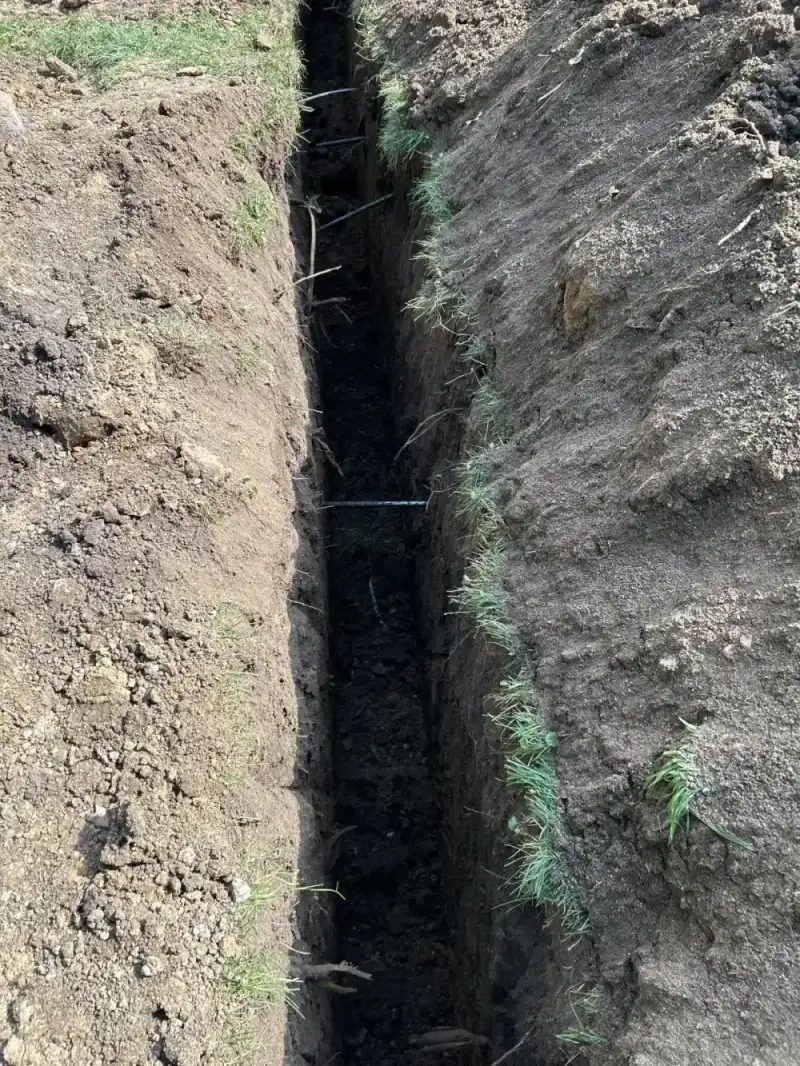

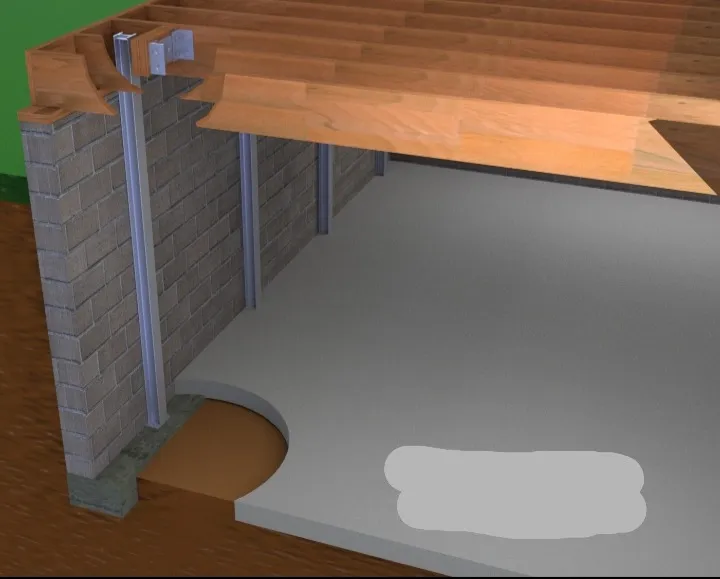

The cost depends on the type of damage. For settling foundations, push piers run $1,250 to $2,500 per pier and helical piers $1,800 to $3,000 per pier, with a typical Kansas City-area project averaging around $4,500. For the bowing walls that are more common in Prairie Village, carbon fiber straps cost $350 to $1,000 per strap for walls with less than two inches of displacement. Wall anchors run $400 to $700 per anchor, and I-beams $200 to $500 per beam for more advanced bowing. Most Prairie Village block foundations along Tomahawk or State Line need four to eight straps or anchors per wall. A full interior waterproofing system — often needed alongside wall repair because of JoCo's elevated groundwater — adds $4,000 to $7,000. We provide exact pricing after inspecting your specific foundation.

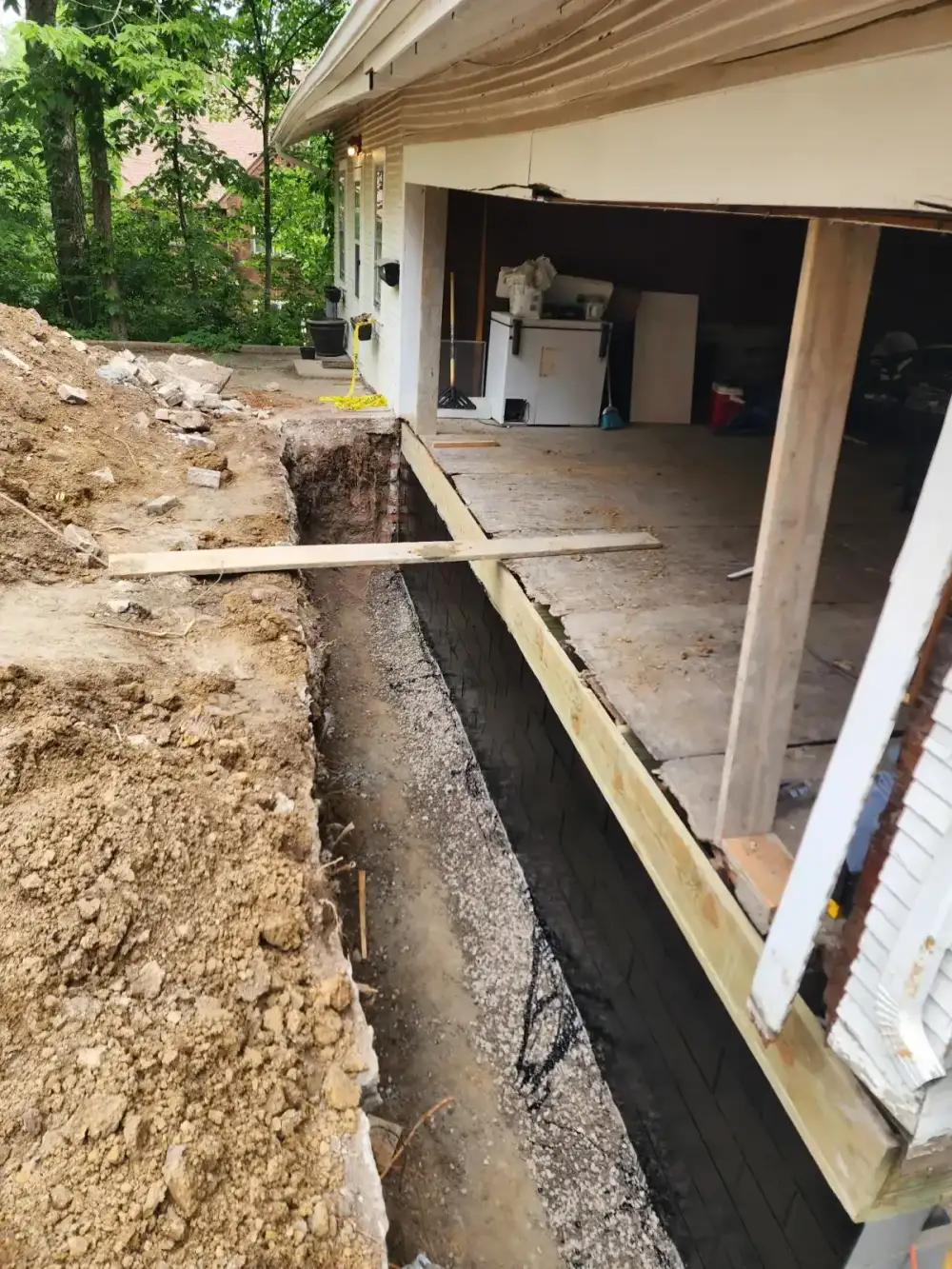

The Peorian loess is a Wisconsinan-age windblown silt deposit that reaches up to 17 feet thick in eastern Johnson County, including beneath Prairie Village. This material is structurally stable when dry but becomes highly unstable when saturated. With 42 inches of annual rainfall and a flat terrain that produces maximum runoff on Hydrologic Soil Group D soil, the loess beneath your foundation cycles between stable and unstable repeatedly throughout the year. This causes uneven settlement that shows up as stair-step cracks in block walls, sticking doors, and sloping floors. Homes along the State Line corridor and in Corinth are especially affected because the loess layer there sits directly beneath the Wymore-Ladoga clay, creating a two-layer problem — expansive clay on top, collapsible silt below. Foundation repair in these areas often requires piers driven past both layers to stable bearing soil.

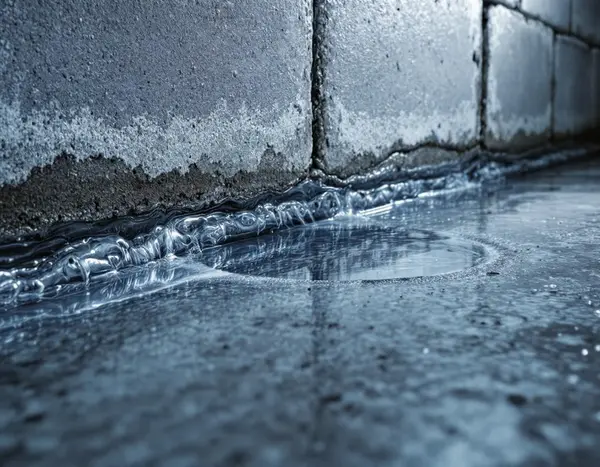

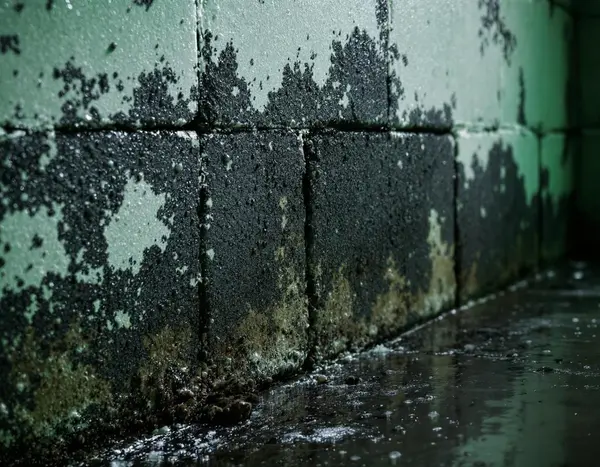

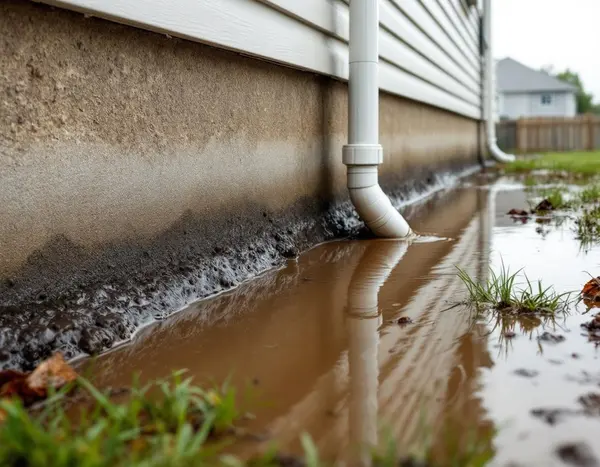

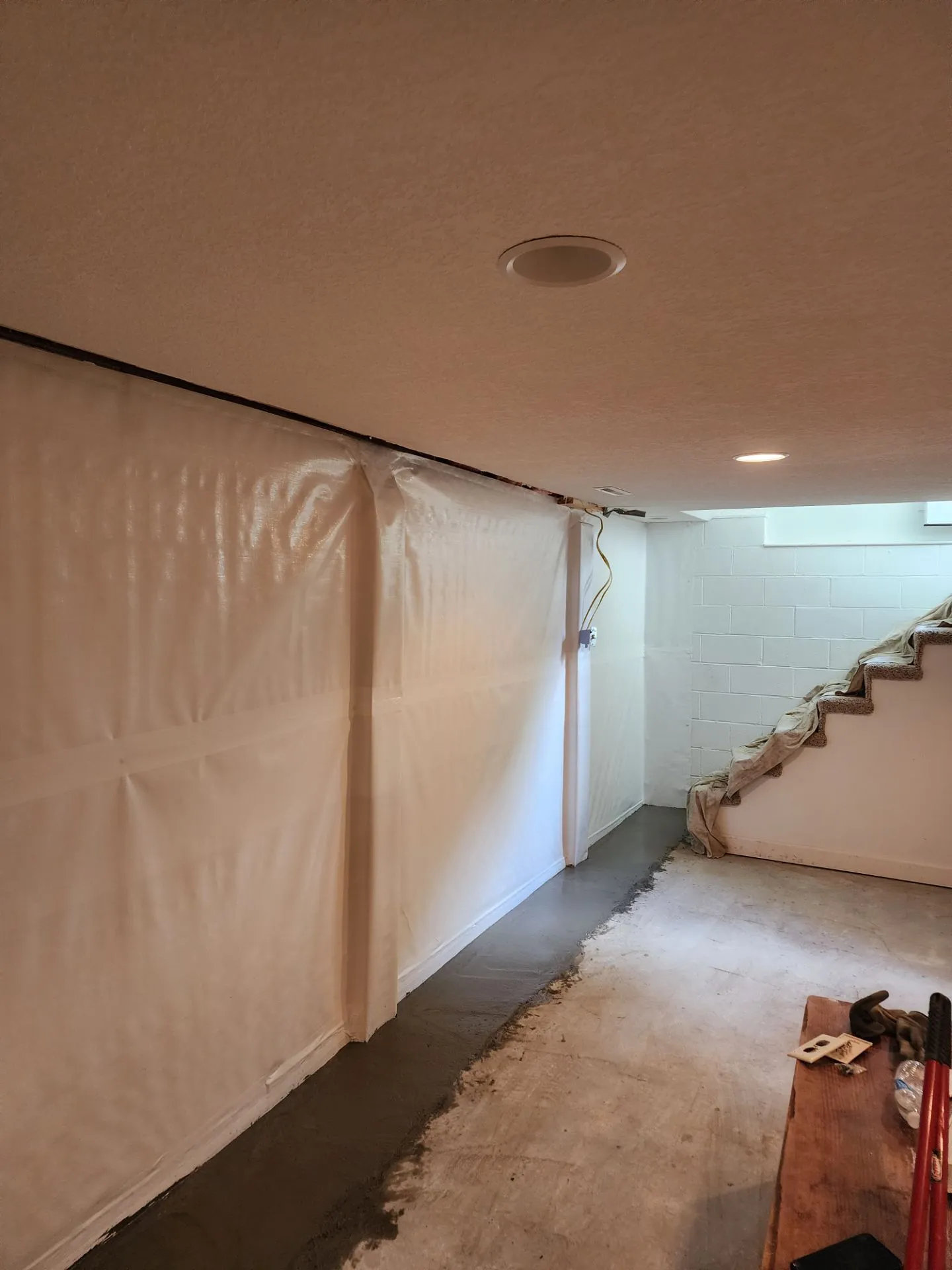

Interior waterproofing systems in Prairie Village manage water — and that's the correct engineering response to the conditions here. Your home sits on Group D soil with the lowest infiltration rate in the USDA classification, meaning nearly all rainfall becomes runoff or saturates the clay against your walls. Exterior waterproofing applied during the 1950s construction of most Prairie Village homes has long since deteriorated. A modern interior system — drain tile at $49 to $59 per linear foot routed to a sump — intercepts hydrostatic pressure before it enters your living space. Average Kansas City waterproofing projects run around $3,708, though homes in the 75th Street corridor or Tomahawk area with elevated groundwater and block foundations typically fall in the $4,000 to $7,000 range. The system doesn't stop the water table from pushing — it gives that water a controlled exit path before it reaches your finished basement.

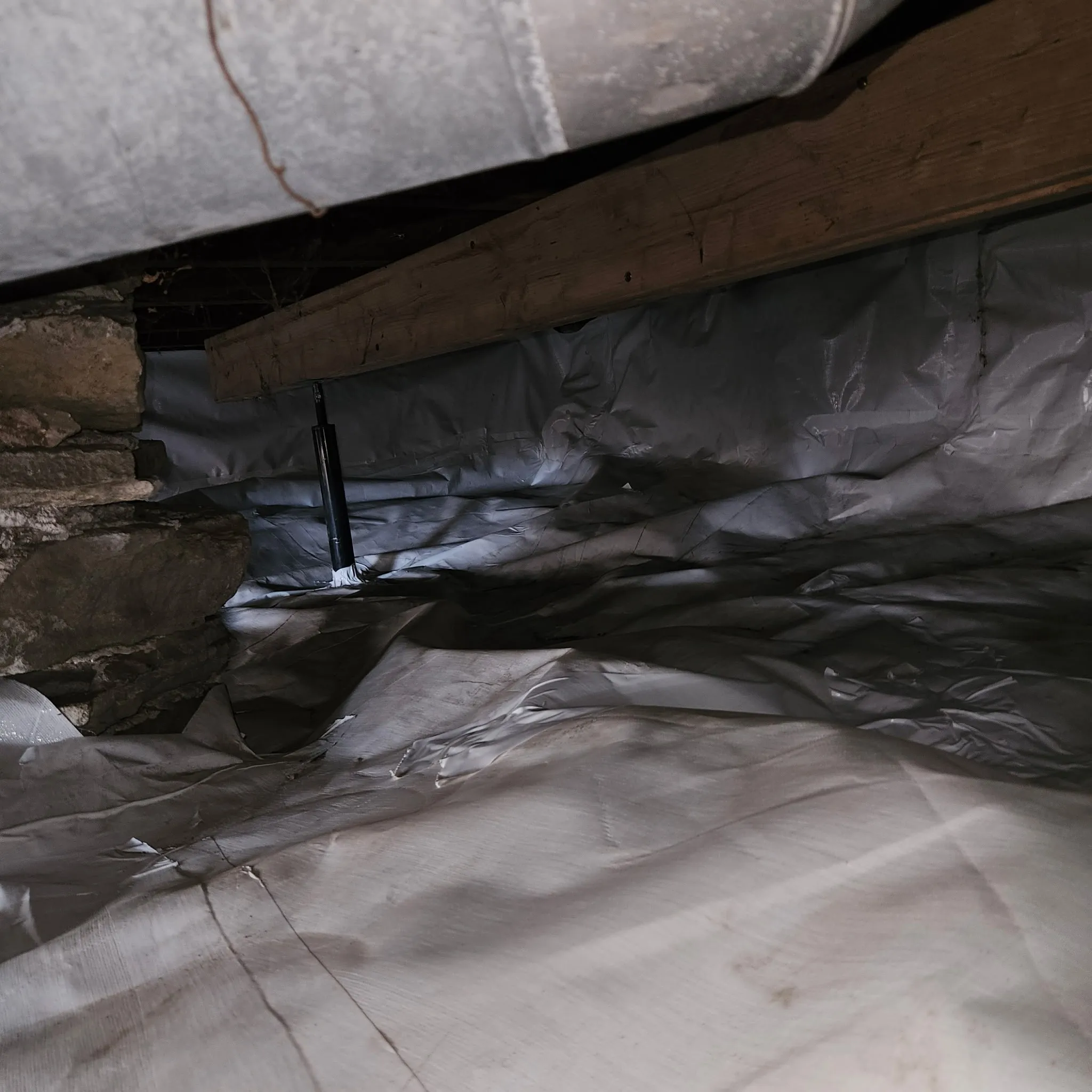

Most Prairie Village homes have full basements, but those with crawlspaces — particularly ranch-style homes with additions built in the 1960s — face serious moisture problems in Johnson County's climate. The stack effect pulls 40 to 50% of your first-floor air from the crawlspace below, and a vented crawlspace in this region averages 77% relative humidity versus 52% for a sealed one, according to the Advanced Energy study. Mold grows above 60% RH, so a vented crawlspace in Prairie Village is essentially a mold incubator for eight months of the year. Encapsulation typically costs $5,500 to $8,000 for Prairie Village homes, and insulation materials may qualify for the federal 30% tax credit. Given the 42 inches of annual rainfall and the elevated groundwater conditions specific to this part of Johnson County, encapsulation delivers measurable improvements in air quality, energy costs, and structural wood preservation.

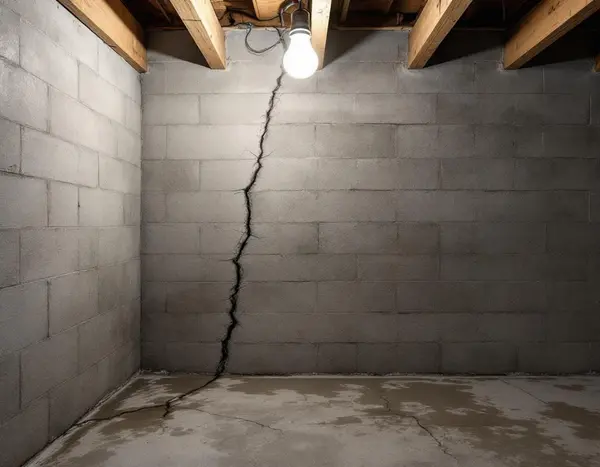

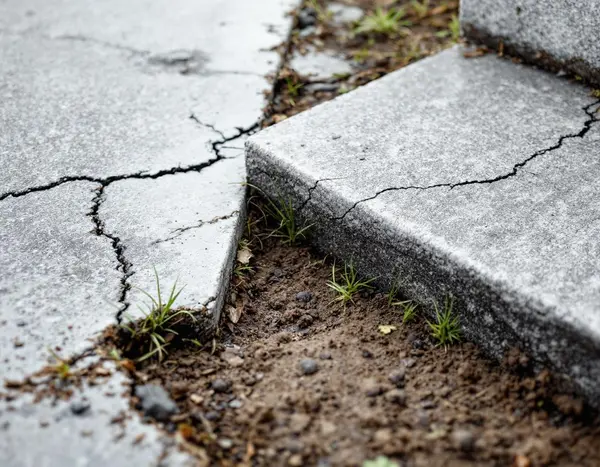

Prairie Village experiences over 100 freeze-thaw cycles annually with a frost depth reaching 36 inches — deep enough to affect the upper portions of your foundation wall and the soil contact zone around it. Each cycle forces moisture in concrete pores and block mortar joints to expand roughly 9%, creating micro-fractures that accumulate over decades. In a 1950s block foundation along the 75th Street corridor, this means mortar joints deteriorate from both sides: freeze-thaw erosion on the exterior face and lateral clay pressure on the interior. The two mechanisms compound each other. Clay expansion and contraction creates horizontal pressure cycles, while freeze-thaw creates vertical and surface-level degradation. After 65 to 75 years of this dual assault, block walls in Prairie Village develop horizontal cracks at the mid-height pressure point and vertical cracks at corners simultaneously. JLB evaluates both damage types during inspection because the repair strategy differs depending on which mechanism is dominant at your property.
